| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

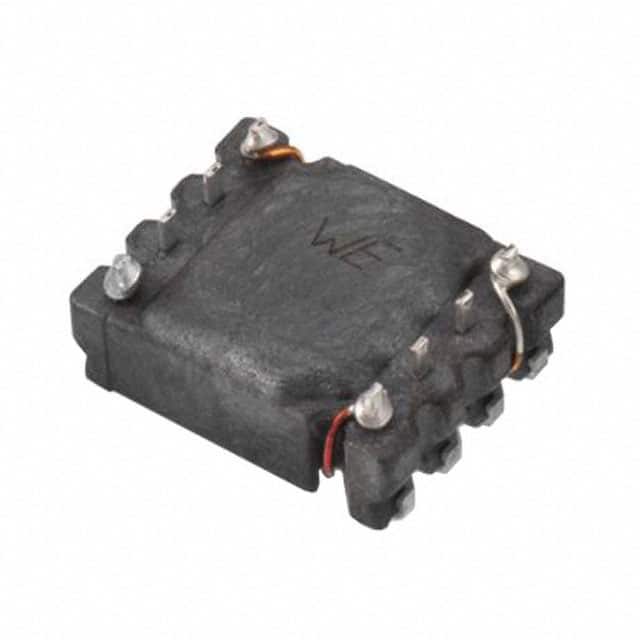

The 744206 is a surface mount common mode line filter (choke) from Würth Elektronik, part of the WE-SL series. It is designed for signal line EMI filtering applications. The component features two windings with a nominal inductance of 60µH ±35% measured at 100kHz and 100mV.
Key electrical specifications include a maximum impedance of 1600Ω, a DC resistance of 0.065Ω maximum, and a rated current of 2A at a 40K temperature rise. The operating temperature range spans from -40°C to +125°C, making it suitable for a wide range of environments.
The 744206 is housed in a horizontal, 8 gull wing surface mount package with body dimensions of 10.2mm x 5.4mm. It is RoHS, REACH, and Halogen Free compliant, with an MSL rating of Level 1 (unlimited). Common mode chokes are used to suppress electromagnetic interference (EMI) in signal lines by attenuating common mode noise while allowing differential signals to pass.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.13 | $3.13 |
| 50+ | $3.01 | $3.01 |
| 100+ | $2.74 | $2.74 |
| 250+ | $2.49 | $2.49 |
| 600+ | $2.39 | $2.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 60µH ±35% at 100kHz, 100mV.
The maximum rated current is 2A at a temperature rise of 40K.
The maximum impedance is 1600Ω.
The operating temperature range is -40°C to +125°C.
The package is Horizontal, 8 Gull Wing surface mount.
Yes, it is compliant with 2011/65/EU&2015/863.
The maximum DC resistance is 0.065Ω at 20°C.
