| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Inductance | |
| Lead Spacing | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Conditions | |
| Tolerance | |
| Type |

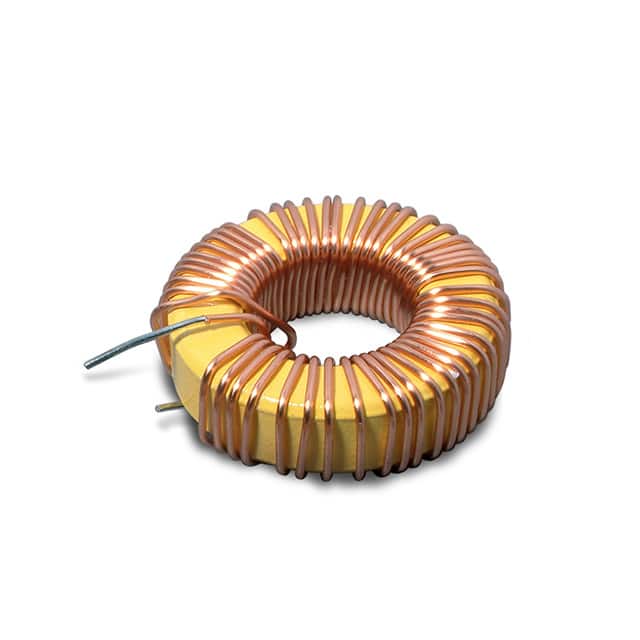

The Würth Elektronik 744132 is a toroidal shielded fixed inductor designed for through-hole mounting. It offers an inductance of 49 µH with ±20% tolerance. The component is rated for a continuous current of 5.8 A (ΔT = 40 K) and has a typical saturation current of 2.2 A. Its maximum DC resistance is 50 mOhm at 20°C. The inductor is shielded and features an iron powder core. It operates over a temperature range of -40°C to +105°C and has an MSL of 1. The package is radial, vertical (open) with a lead spacing of 12.0 mm. This component is RoHS, REACH, and halogen-free compliant. It is suitable for power supply filtering and energy storage applications where low DC resistance and high current handling are required.
The inductance is 49 µH at 10 kHz and 5 mA, with a tolerance of ±20%.
The rated current is 5.8 A maximum at a temperature rise of 40 K.
The maximum DC resistance is 50 mOhm at 20°C.
The self-resonant frequency is 16 MHz (typical).
The inductor is through-hole mounted in a radial, vertical (open) package with 12.0 mm lead spacing.
Yes, it is shielded.
The operating temperature range is -40°C to +105°C.
