| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
318 pcs
|
318 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
318 pcs
|
318 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current (ΔT=40K) | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

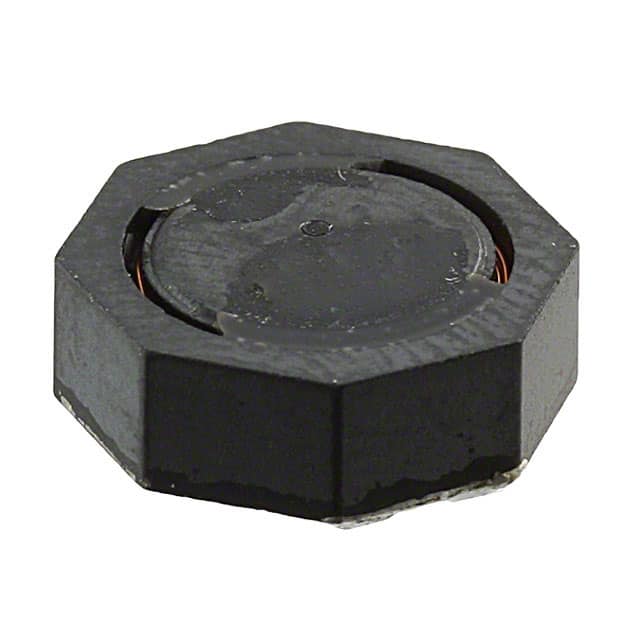

The 744066100 is a shielded drum core wirewound inductor from Würth Elektronik's WE-TPC series. It features a ferrite core and is designed for surface mount technology. The inductor offers an inductance of 10 µH at 100 kHz/1 V with a tolerance of ±30%. It has a rated current of 3.9 A (ΔT=40 K) and a saturation current of 4 A typical. The DC resistance is 27 mΩ typical and 35 mΩ maximum. The self-resonant frequency is 20 MHz typical. The component is shielded to minimize electromagnetic interference. It is housed in a nonstandard package measuring 10.00 mm x 10.00 mm x 4.10 mm. The operating temperature range is -40°C to +125°C, with ambient temperature for rated current up to +95°C. The inductor is RoHS, REACH, and halogen-free compliant. Storage conditions require temperatures below 40°C and humidity below 75% RH. The moisture sensitivity level is MSL 1. Typical applications include DC-DC converters, power supplies, and EMI filtering in automotive, industrial, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $2.00 | $2.00 |
| 50+ | $1.75 | $1.75 |
| 100+ | $1.60 | $1.60 |
| 500+ | $1.50 | $1.50 |
| 800+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH at 100 kHz / 1 V with ±30% tolerance.
The rated current is 3.9 A maximum (ΔT = 40 K).
The typical DCR is 27 mΩ and the maximum DCR is 35 mΩ at 20°C.
The self-resonant frequency is 20 MHz typical.
The package is nonstandard, measuring 10.00 mm x 10.00 mm x 4.10 mm.
