| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ @ 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

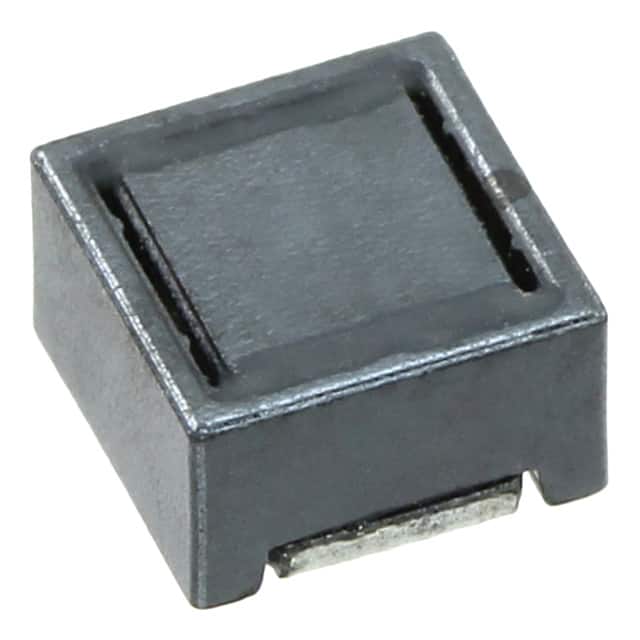

The Würth Elektronik 74406032100 is a fixed, shielded wirewound power inductor from the WE-LQFS series. It offers a nominal inductance of 10 µH with a ±20% tolerance, measured at 100 kHz / 0.1 V. The component is rated for a maximum continuous current of 0.94 A (based on a 40 K temperature rise) and has a typical saturation current of 0.75 A.
This inductor features a low typical DC resistance of 190 mΩ and a maximum of 228 mΩ at 20 °C. Its self-resonant frequency is typically 66 MHz. The component is designed for surface mount assembly and comes in a nonstandard 3818 package with dimensions of 3.80 mm x 3.80 mm and a seated height of 2.00 mm.
The inductor is shielded for reduced electromagnetic interference and uses a ferrite core material. It is RoHS, REACH, and Halogen Free compliant, with an MSL rating of 1 (unlimited). The operating temperature range is -40 °C to +125 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
| 50+ | $0.83 | $0.83 |
| 100+ | $0.63 | $0.63 |
| 1,000+ | $0.60 | $0.60 |
| 2,000+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH with a tolerance of ±20%, measured at 100 kHz / 0.1 V.
The maximum rated current is 0.94 A, based on a 40 K temperature rise.
The typical DC resistance is 190 mΩ, with a maximum of 228 mΩ at 20 °C.
The typical self-resonant frequency is 66 MHz.
The component comes in a nonstandard 3818 SMD package with dimensions of 3.80 mm x 3.80 mm and a seated height of 2.00 mm.
Yes, it is RoHS3 compliant.
The operating temperature range is -40 °C to +125 °C.
