| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
129 pcs
|
129 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

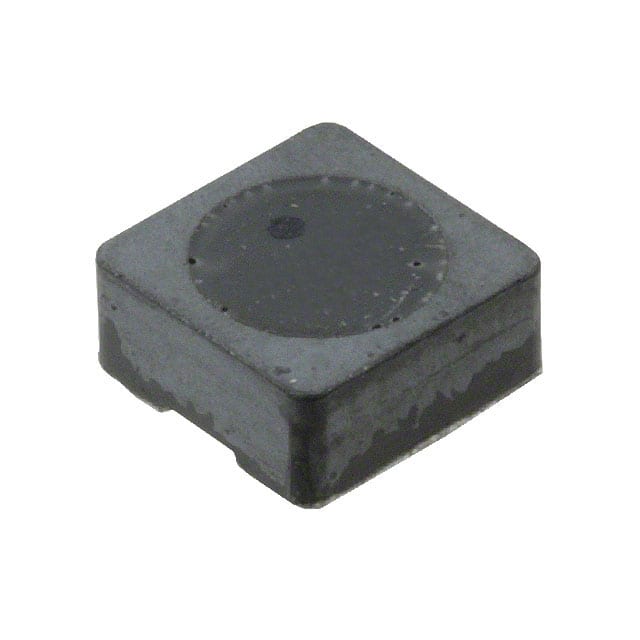

The Würth Elektronik 744053221 is a shielded drum core wirewound inductor from the WE-TPC series. It offers an inductance of 220µH measured at 100kHz/100mV with a tolerance of ±30%. The component is rated for a maximum DC current of 300mA (based on a 30K temperature rise) and has a typical saturation current of 290mA. DC resistance is 1.17Ω typical and 1.25Ω maximum at 20°C. The self-resonant frequency is typically 6MHz. The inductor is shielded to reduce electromagnetic interference. It is housed in a 2323 (5858 Metric) SMD package with dimensions 5.80mm x 5.80mm x 3.00mm. Operating temperature range is -40°C to +125°C. The component is RoHS3, REACH, and halogen free compliant with MSL Level 1. Typical applications include power supply filtering, DC-DC converters, and noise suppression in compact electronic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.55 | $1.55 |
| 10+ | $1.48 | $1.48 |
| 50+ | $1.40 | $1.40 |
| 100+ | $1.29 | $1.29 |
| 250+ | $1.22 | $1.22 |
| 400+ | $0.95 | $0.95 |
| 800+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220µH at 100kHz/100mV, ±30% tolerance.
300mA maximum based on 30K temperature rise.
1.17Ω typical, 1.25Ω maximum at 20°C.
6 MHz typical.
2323 (5858 Metric) SMD package, 5.80mm x 5.80mm x 3.00mm.
