| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Q @ Freq | |
| SVHC Present | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

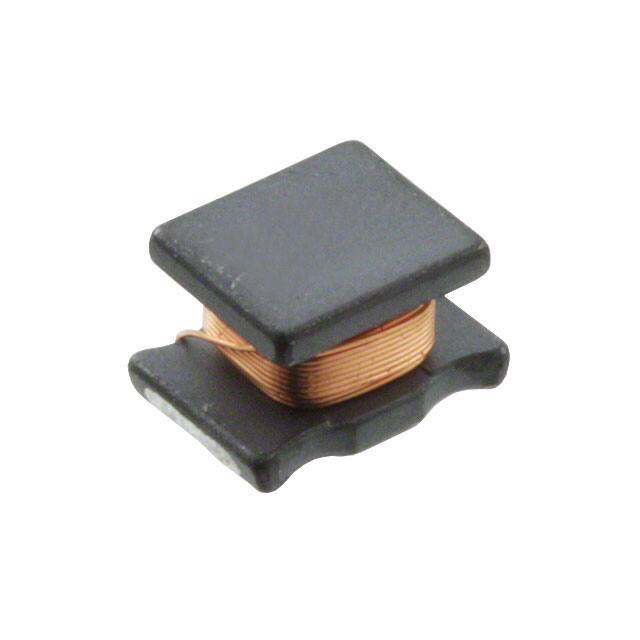

The Würth Elektronik 744045330 is a drum core, wirewound fixed inductor from the WE-LQ series. It offers an inductance of 33 µH with ±10% tolerance, rated for a maximum DC current of 430 mA (ΔT = 40 K) and a saturation current of 850 mA typical. The DC resistance is 1.1 Ω maximum at 20°C. This inductor has a self-resonant frequency of 18 MHz typical and a Q factor of 55 at 1 MHz. It is designed for surface mount applications in a 1812 (4532 Metric) package with ferrite core and unshielded construction. Operating temperature range is -40°C to +125°C. The component is RoHS, REACH, and Halogen Free compliant with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.84 | $0.84 |
| 50+ | $0.78 | $0.78 |
| 100+ | $0.71 | $0.71 |
| 250+ | $0.65 | $0.65 |
| 500+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 µH at 1 MHz, 100 mV.
430 mA maximum (ΔT = 40 K).
1.1 Ω maximum at 20°C.
18 MHz typical.
1812 (4532 Metric) surface mount.
-40°C to +125°C.
Yes, compliant with 2011/65/EU & 2015/863.
