| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (for Rated Current) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

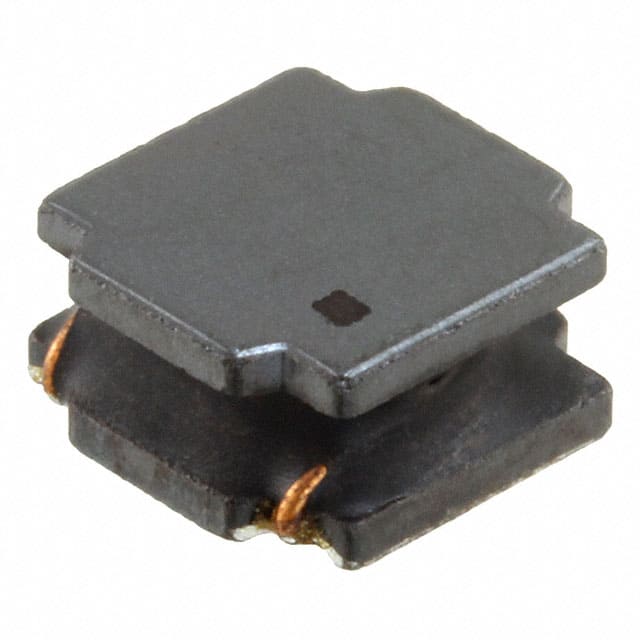

The 74404084221 is a semi-shielded wirewound power inductor from Würth Elektronik's WE-LQS series. It offers an inductance of 220µH with ±20% tolerance, rated current of 810mA (ΔT=40K), and saturation current of 1.1A typical. DC resistance is 592mΩ at 20°C. The self-resonant frequency is 4.5MHz typical. Operating temperature range is -40°C to +125°C. This component is AEC-Q200 Grade 1 qualified, making it suitable for automotive applications. It is RoHS, REACH, and Halogen Free compliant. The package is a nonstandard SMD size 8.0mm x 8.0mm x 4.2mm. The semi-shielded construction reduces electromagnetic interference. Typical applications include DC-DC converters, power supplies, and filtering circuits in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 50+ | $1.29 | $1.29 |
| 250+ | $1.19 | $1.19 |
| 500+ | $1.08 | $1.08 |
| 1,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
220µH ±20% at 100kHz/1V.
810mA maximum at ΔT=40K.
592mΩ nominal at 20°C.
4.5MHz typical.
8.0mm x 8.0mm x 4.2mm nonstandard SMD.
Yes, AEC-Q200 Grade 1.
-40°C to +125°C.
