| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current IR | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Self Resonant Frequency | |
| Shielding | |
| Size / Dimension | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

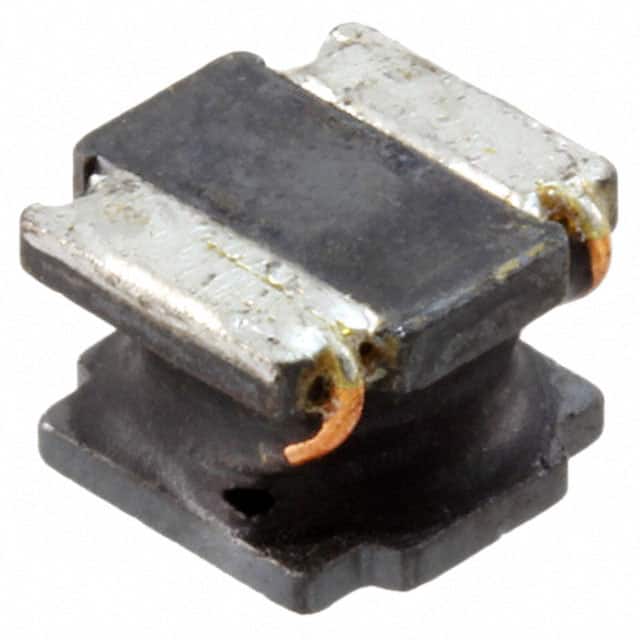

The 74404064470 is a surface-mount semi-shielded power inductor from Würth Elektronik's WE-LQS series. It features a drum core ferrite construction with wirewound technology, providing an inductance of 47 µH (nominal, ±20% tolerance) measured at 100 kHz and 1 V. The component is rated for a maximum DC current of 1.4 A based on a 40 K temperature rise, with a typical saturation current of 1.6 A. DC resistance is 200 mΩ nominal at 20°C.
This inductor is designed for use in power supply and DC-DC converter applications, offering a self-resonant frequency of 10 MHz typical and a maximum operating voltage of 120 V DC. It is qualified to AEC-Q200 Grade 1, making it suitable for automotive and high-reliability environments. The operating temperature range spans -40°C to +125°C.
The component is supplied in a 6045 surface mount package (6.00 mm x 6.00 mm footprint, 4.5 mm maximum height) and is compatible with standard reflow soldering processes. It is RoHS3 compliant, REACH conform, halogen-free, and has an MSL rating of Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
| 50+ | $1.09 | $1.09 |
| 250+ | $1.00 | $1.00 |
| 500+ | $0.93 | $0.93 |
| 1,500+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47 µH nominal, tested at 100 kHz and 1 V.
The rated current is 1.4 A maximum, based on a temperature rise of 40 K.
The DC resistance is 200 mΩ nominal at 20°C.
The self-resonant frequency is 10 MHz typical.
The inductor is supplied in a 6045 surface mount package (6.00 mm x 6.00 mm footprint, 4.5 mm maximum height).
Yes, it is AEC-Q200 Grade 1 qualified.
The operating temperature range is -40°C to +125°C.
