| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17 pcs
|
17 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance Tolerance | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current | |
| Ratings | |
| SVHC Present | |
| Saturation Current | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

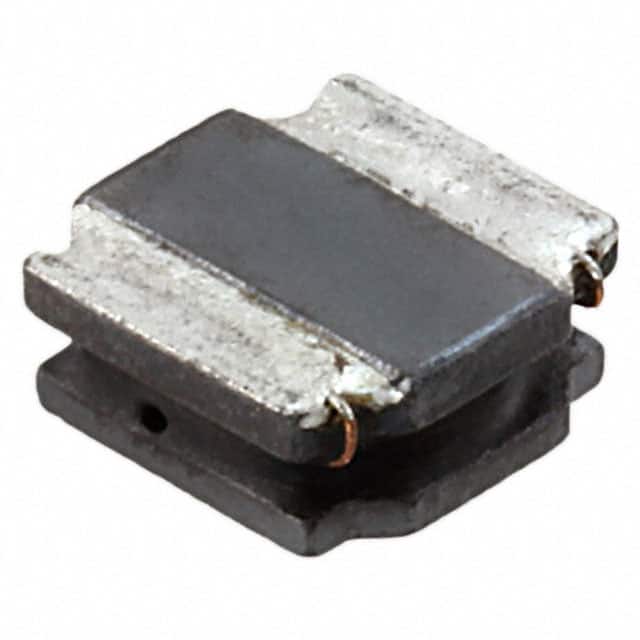

The 74404063100 is a semi-shielded, wirewound drum core power inductor from Würth Elektronik's WE-LQS series. It features a ferrite core and is designed for surface mount assembly in a compact 6028 package (6.00mm x 6.00mm x 2.80mm).
With an inductance of 10µH (±20% tolerance), this inductor offers a rated current of 1.95A (ΔT=40K) and a saturation current of 2.2A typical. DC resistance is 72mΩ (±30%) and self-resonant frequency is 31MHz typical. Maximum operating voltage is 120V DC.
The component is RoHS3 compliant (2011/65/EU & 2015/863), REACH conform, and halogen-free per JEDEC JS709B and IEC 61249-2-21. It is AEC-Q200 Grade 1 qualified for automotive applications. Moisture sensitivity level is MSL 1 (unlimited). Operating temperature range is -40°C to +125°C.
Typical applications include power supply circuits, DC-DC converters, and EMI filtering in automotive and industrial electronics. The inductor is supplied in tape and reel packaging (quantity not specified).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
| 50+ | $1.10 | $1.10 |
| 250+ | $1.01 | $1.01 |
| 500+ | $0.93 | $0.93 |
| 2,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 100 kHz/1 V.
1.95 A maximum (ΔT = 40 K).
72 mΩ nominal (±30%) at 20°C.
31 MHz typical.
Nonstandard 6028 package: 6.00 mm x 6.00 mm x 2.80 mm.
It is semi-shielded.
Yes, it is AEC-Q200 Grade 1 qualified.
