| Category | |
| Manufacturer Name | |
| AEC-Q200 Compliant | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Resistance (Ohms) | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

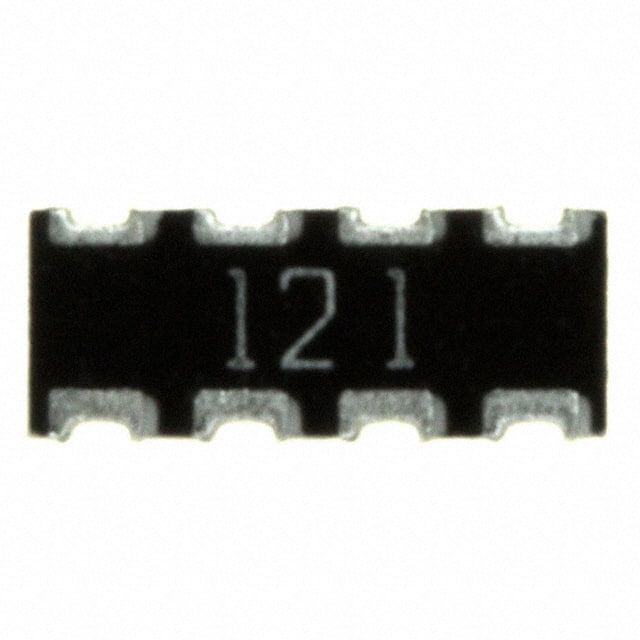

The CTS Resistor Products 743C083121JP is an AEC-Q200 compliant resistor network array designed for surface mount applications. This component contains 4 isolated resistor elements, each with a resistance value of 120 Ohms and a tolerance of ±5%. The array operates within a temperature range of -55°C to 125°C.
Constructed using thick film technology, this resistor array offers improved TCR tracking compared to discrete resistors and reduces component count in layouts. It is housed in a 2008 package with concave, long side terminals, suitable for high-density designs.
Key electrical specifications include a power rating of 100mW per element and a temperature coefficient of ±200ppm/°C. The compact dimensions of 5.08mm (Length) x 2.00mm (Width) x 0.70mm (Height) make it ideal for space-constrained applications.
This part is suitable for various applications including data communications, image processing, medical equipment, networking, and pull-up/pull-down logic gates.
The 743C083121JP resistor array has a resistance value of 120 Ohms.
The tolerance for the resistors in the 743C083121JP array is ±5%.
The 743C083121JP array contains 4 resistor elements.
The 743C083121JP resistor array has an isolated circuit configuration.
The operating temperature range for the 743C083121JP resistor array is -55°C to 125°C.
The 743C083121JP resistor array is supplied in a 2008 package.
Yes, the 743C083121JP resistor array is AEC-Q200 compliant.
