| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Height Above Board | |
| Lead Spacing | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

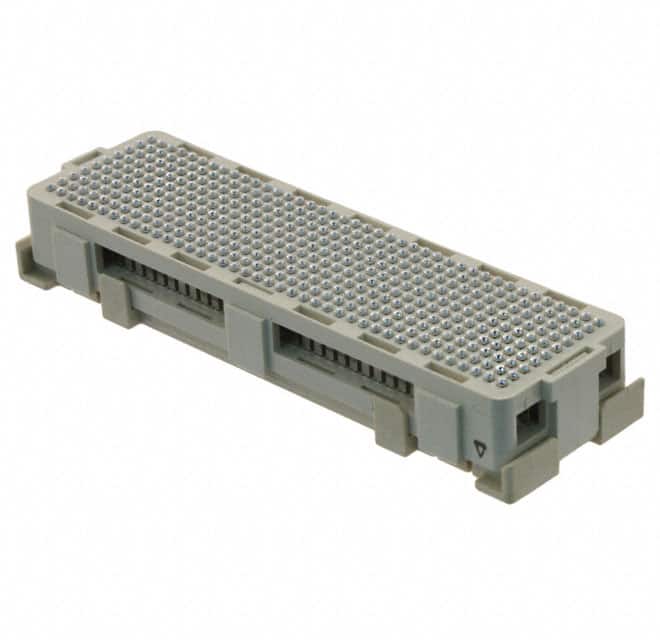

The Amphenol ICC 74390-101LF is a 400-position array connector with female sockets, designed for mezzanine board-to-board applications. It features 10 rows of contacts arranged on a 1.27mm pitch, providing a high-density interconnection solution.
This connector is surface mount compatible, with a height above board of 7.35mm (0.289 inches). The contacts are finished with gold (30.0µin or 0.76µm thickness) for reliable conductivity and corrosion resistance. The connector supports mated stacking heights of 8mm and 14mm, making it suitable for various board spacing requirements.
Designed for automated assembly, the surface mount package allows for efficient production. The 400-position configuration is ideal for applications requiring a large number of signal connections in a compact footprint.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.56 | $40.56 |
| 10+ | $35.27 | $35.27 |
| 25+ | $33.74 | $33.74 |
| 50+ | $32.94 | $32.94 |
| 200+ | $29.56 | $29.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
400 positions.
1.27mm (0.050 inches).
Surface mount.
10 rows.
Gold with a thickness of 30.0µin (0.76µm).
8mm and 14mm.
RoHS3 Compliant.
