| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,705 pcs
|
7705 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Circuit Type | |
| Duration | |
| Mounting Type | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance | |
| Temperature Coefficient | |
| Tolerance |

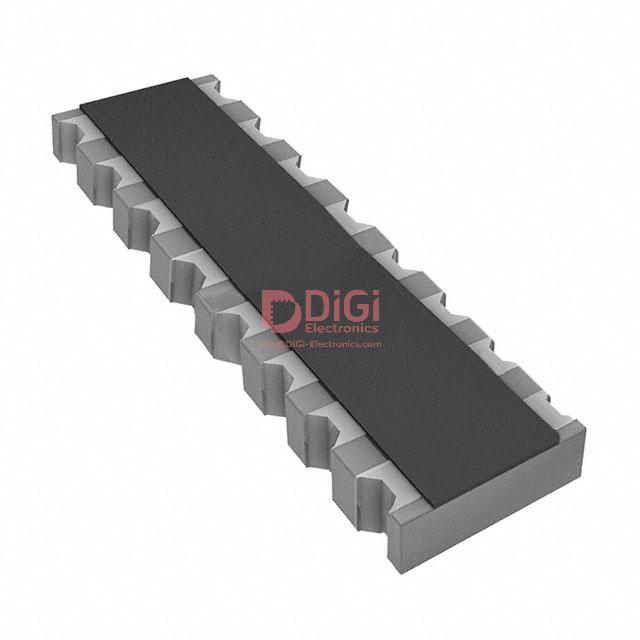

The CTS Resistor Products 742C163223J is a resistor network/array featuring 8 isolated resistors, each with a resistance of 22k Ohm and a tolerance of ±5%. The power dissipation per element is 63mW, with a temperature coefficient of ±200ppm/°C. This component operates within a temperature range of -55°C to 125°C.
Designed for surface mounting, the 742C163223J comes in a 2506 package with concave, long side terminals. Its dimensions are 0.252" L x 0.063" W (6.40mm x 1.60mm). This resistor network is suitable for applications such as DDR SDRAM, DRAM, and MDDR.
This part belongs to the 742 series from CTS Resistor Products. It is classified as a resistor network array, suitable for various electronic designs requiring precise resistance configurations.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22k Ohm.
The tolerance is ±5%.
There are 8 resistors in the network.
The power per element is 63mW.
The temperature coefficient is ±200ppm/°C.
The operating temperature range is -55°C to 125°C.
It has an isolated circuit type.
Applications include DDR SDRAM, DRAM, and MDDR.
The package is 2506, Concave, Long Side Terminals.
The dimensions are 0.252" L x 0.063" W (6.40mm x 1.60mm).
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
The REACH status is REACH Unaffected.
