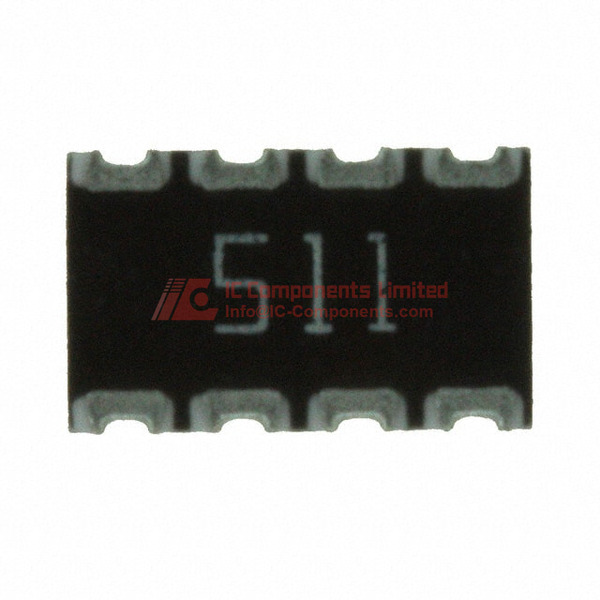

742C163220JTR The CTS-Frequency Controls 742C163220JTR is a resistor network with 4 individual resistors, each rated for 125mW. It offers a resistance of 510 Ohms with a tolerance of ±5%.
Mfr Part #:

742C163220JTR

Available from 1 distributors
Mfr Name: CTS-Frequency Controls
CTS-Frequency Controls
The CTS-Frequency Controls 742C163220JTR is a resistor network with 4 individual resistors, each rated for 125mW. It offers a resistance of 510 Ohms with a tolerance of ±5%.
✓ Total Stock: 4,010 pcs
$ Price Range: $0.05

742C163220JTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
4,010 pcs
On Request
4010 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

742C163220JTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit Type
Failure Rate
Lead Style
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance
Tape & Reel
Temperature Coefficient
Tolerance
View Similar Products (0)

742C163220JTR Description

Short technical summary and product information.

This CTS-Frequency Controls resistor network, part number 742C163220JTR, is designed for surface mount applications. It features 4 isolated resistors, each with a power rating of 125mW and a resistance value of 510 Ohms with a ±5% tolerance. The temperature coefficient is ±200ppm/°C, and it operates within a temperature range of -55°C to 125°C.



The component is housed in a 2012 package with concave, long side terminals. Its dimensions are 5.08mm x 3.20mm, with a maximum seated height of 0.70mm. The series is identified as 744. This resistor network is RoHS3 Compliant and has an MSL rating of 1 Unlimited.



This part is suitable for various electronic circuits requiring precise resistance values and a compact form factor. The surface mount design facilitates automated assembly processes.

742C163220JTR Quick Information

Product Type: Resistor Network
Series: 744
Canonical Name: CTS-Frequency Controls 744 Series Resistor Network, 510 Ohms ±5%, 4 Resistors, 8 Pins, 2012 Package
Subcategory: Resistor Networks, Arrays

742C163220JTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

742C163220JTR Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

742C163220JTR Features

  • Four isolated resistors in one package.
  • 510 Ohms resistance with ±5% tolerance.
  • 125mW power rating per resistor element.
  • Operates from -55°C to 125°C.
  • Surface mount 2012 package.

742C163220JTR Applications

  • Ideal for signal conditioning circuits.
  • Used in power supply filtering applications.
  • Suitable for general purpose analog designs.
  • Component in automated PCB assembly.

742C163220JTR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 742C163220JTR?

510 Ohms per element.

What is the tolerance of the 742C163220JTR?

±5%

How many resistors are in the 742C163220JTR?

4 resistors.

What is the circuit configuration of this resistor network?

Isolated (each resistor is independent).

What is the package or case style of the 742C163220JTR?

2012, Concave, Long Side Terminals.

What is the operating temperature range of the 742C163220JTR?

-55°C to 125°C.

What is the power rating per resistor?

125mW per element.
