| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,004 pcs
|
1004 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,003 pcs
|
1003 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,003 pcs
|
1003 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Halogen Free | |
| Height (Max) | |
| Impedance (Maximum) @ 1200 MHz | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Qualification | |
| Tape & Reel | |
| Type | |
| Width | |
| height (Nominal) |

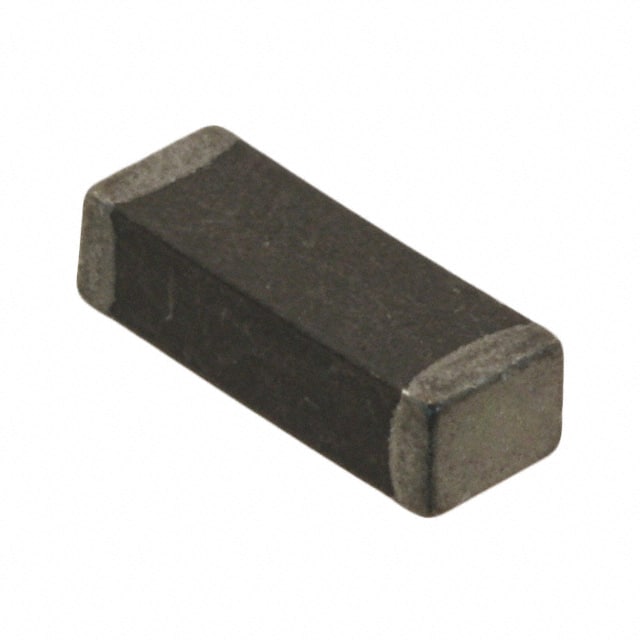

The Würth Elektronik 74279225101 is a WE-MPSB series EMI Multilayer Power Suppression Bead designed for high current applications. It offers a nominal impedance of 100 Ohms at 100 MHz with a tolerance of ±25%, and a typical impedance of 160 Ohms at 1200 MHz.
This ferrite bead is rated for a maximum current of 10 A and features a low typical DC resistance of 3 mOhm (4 mOhm maximum). It is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. The component is RoHS, REACH, and Halogen Free compliant, and has an MSL of Level 1.
The device is housed in a 3412 (8531 Metric) surface mount package with dimensions of 8.5 mm x 3.0 mm x 2.3 mm. It has an operating temperature range of -55°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.34 | $1.34 |
| 100+ | $1.29 | $1.29 |
| 500+ | $1.25 | $1.25 |
| 1,000+ | $1.20 | $1.20 |
| 2,500+ | $1.10 | $1.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal impedance is 100 Ω at 100 MHz with a tolerance of ±25%. The typical impedance at 1200 MHz is 160 Ω.
The maximum rated current is 10 A.
The typical DC resistance is 3 mΩ, with a maximum of 4 mΩ at 20 °C.
The operating temperature range is -55°C to 125°C.
The package is 3412 (8531 Metric) with dimensions of 8.5 mm x 3.0 mm x 2.3 mm.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863.
Yes, it is AEC-Q200 Grade 1 qualified.
