| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,191 pcs
|
5191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
578 pcs
|
578 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Halogen Free | |
| Height (Max) | |
| Impedance (Typical @ 90 MHz) | |
| Impedance @ Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Rated Current (Maximum @ ΔT = 20 K) | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Width |

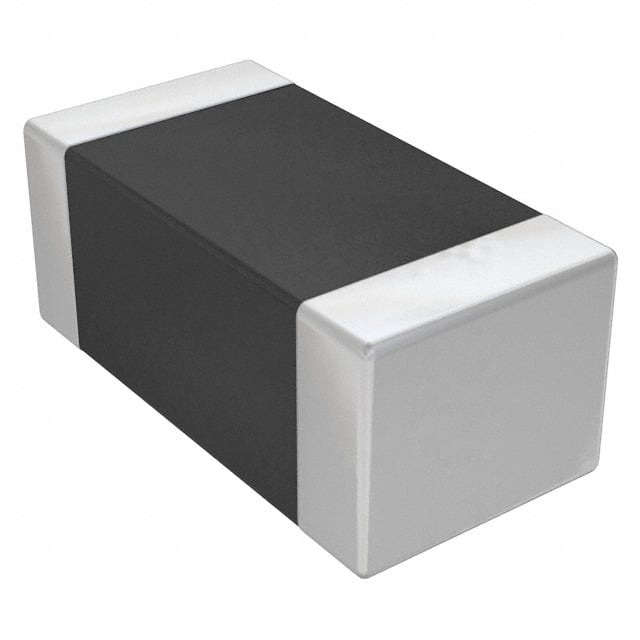

The 74279218 is a WE-CBF series SMT EMI suppression ferrite bead from Würth Elektronik. It features 600 Ω nominal impedance at 100 MHz (±25% tolerance) with a typical maximum impedance of 700 Ω at 90 MHz. The component is rated for a continuous current of 1.2 A at a 20 K temperature rise and 2 A at 40 K rise, with a maximum DC resistance of 100 mΩ.
Designed for high current applications, the ferrite bead is qualified to AEC-Q200 Grade 1, making it suitable for automotive and other high-reliability environments. It operates over a temperature range of -55°C to +125°C and meets RoHS3, REACH, and halogen-free requirements.
The part is housed in a standard 1206 (3216 Metric) surface mount package, with dimensions of 3.2 mm x 1.6 mm and a maximum height of 1.3 mm. It is moisture sensitivity level 1 (MSL 1) and can be stored under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.26 | $0.26 |
| 10+ | $0.25 | $0.25 |
| 50+ | $0.23 | $0.23 |
| 100+ | $0.22 | $0.22 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.20 | $0.20 |
| 3,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1206 (3216 Metric) surface mount package.
-55°C to +125°C.
Yes, RoHS3 compliant per 2011/65/EU&2015/863.
600 Ω ±25% nominal.
1.2 A at ΔT=20K and 2 A at ΔT=40K.
Yes, AEC-Q200 Grade 1.
100 mΩ maximum.
