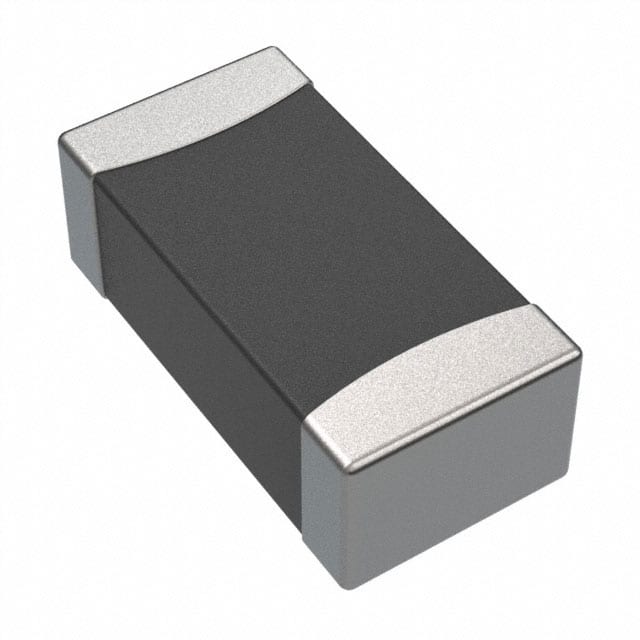

This is a WE-CBF series SMT EMI suppression ferrite bead from Würth Elektronik, designed for power line filtering. It offers 120Ω impedance at 100MHz (typical) with a maximum impedance of 160Ω at 400MHz.
Electrical characteristics include a DC resistance of 20mΩ maximum and two current ratings: 3A at ΔT=20K and 5A at ΔT=40K. The component is rated for operating temperatures from -55°C to 125°C.
The ferrite bead is housed in an 0805 (2012 metric) surface mount package with dimensions 2.00mm x 1.20mm x 1.10mm. It is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. Compliance includes RoHS, REACH, and Halogen Free.
Storage conditions recommend <40°C and <75% RH. Moisture sensitivity level is MSL 1 (unlimited). This component should not be used beyond rated current to avoid excessive heat.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.24 | $0.24 |
| 100+ | $0.23 | $0.23 |
| 500+ | $0.22 | $0.22 |
| 2,500+ | $0.21 | $0.21 |
| 4,000+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
120Ω at 100MHz (nominal, ±25% tolerance) with maximum impedance 160Ω typical at 400MHz.
3A at ΔT=20K and 5A at ΔT=40K.
20mΩ maximum.
-55°C to 125°C.
0805 (2012 metric) surface mount package.
Yes, AEC-Q200 Grade 1.
MSL 1 (unlimited).
