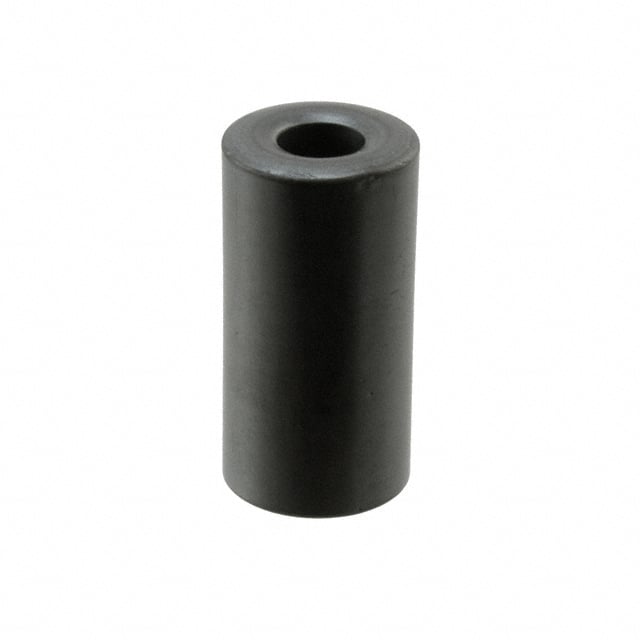

7427727 Solid round ferrite core for EMI suppression on cables. Impedance 100 Ohm at 10 MHz, 14.2mm outer diameter, 6.35mm inner diameter, 28.5mm length.
Mfr Part #:

7427727

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Solid round ferrite core for EMI suppression on cables. Impedance 100 Ohm at 10 MHz, 14.2mm outer diameter, 6.35mm inner diameter, 28.5mm length.
✓ Total Stock: 5 pcs
$ Price Range: $3.46 - $4.42

7427727 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7427727 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Design
Halogen Free
Impedance @ Frequency
Inner Dimension
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Outer Dimension
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Type
View Similar Products (0)

7427727 Description

Short technical summary and product information.

The Würth Elektronik 7427727 is an axial ferrite bead from the WE-AFB LFS series, designed for EMI suppression on cables. It features a solid round core with outer diameter 14.2 mm, inner diameter 6.35 mm, and length 28.5 mm, suitable for cable diameters up to 6.1 mm.



Electrical characteristics include an impedance of 136 Ω at 1 MHz and 82 Ω at 10 MHz (typical, 1 turn, AWG26 test cable). The initial permeability is 5000. Operating temperature range is -25°C to +125°C, with a Curie temperature of 160°C.



This ferrite core is free-hanging mount with wire termination. It is compliant with RoHS, REACH, and halogen-free standards, and has MSL 1. Storage conditions: <40°C and <75% RH in original packaging.

7427727 Quick Information

Product Type: Axial Ferrite Bead
Series: WE-AFB LFS
Canonical Name: Würth Elektronik 7427727 Axial Ferrite Bead, 100 Ohm @ 10MHz, Solid Round Core
Subcategory: Axial Ferrite Bead

7427727 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: REACH Conform or declared
Lead Free: Yes

7427727 Estimated Pricing

Qty Low High
1+ $4.42 $4.42
10+ $4.33 $4.33
50+ $4.16 $4.16
80+ $3.98 $3.98
240+ $3.63 $3.63
560+ $3.46 $3.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

7427727 Features

  • Solid round ferrite core design.
  • Impedance 136 Ω at 1 MHz typical.
  • Operating temperature -25°C to +125°C.
  • RoHS and REACH compliant.
  • MSL 1 moisture sensitivity level.

7427727 Applications

  • Used for EMI suppression on cables.
  • Suitable for cable diameters up to 6.1 mm.
  • Ideal for general electronic equipment.
  • Free hanging mount for easy installation.

7427727 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the Würth Elektronik 7427727?

-25°C to +125°C.

Is the 7427727 RoHS compliant?

Yes, RoHS3 compliant per directive 2011/65/EU and 2015/863.

What is the impedance of the 7427727 at 1 MHz?

136 Ω typical with 1 turn, test cable AWG26.

What is the mounting type of the 7427727?

Free hanging, wire termination.

What is the moisture sensitivity level (MSL) of the 7427727?

MSL 1, unlimited.

What is the outer diameter of the core?

14.20 mm.

What is the core material of the 7427727?

8W5000.
