| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,362 pcs
|
1362 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
464 pcs
|
464 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
299 pcs
|
299 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Curie Temperature | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Halogen Free | |
| Height (Max) | |
| Impedance (Typical @ 25 MHz) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Rated Current (Max) | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

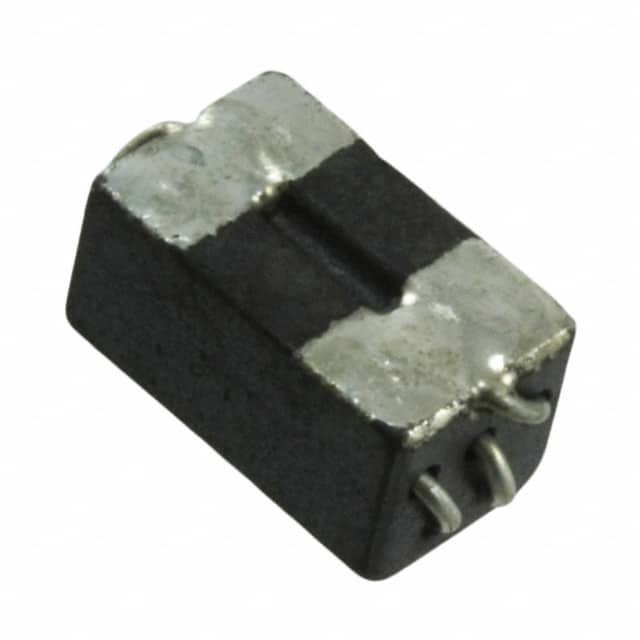

The Würth Elektronik 7427512 is a single-line surface mount ferrite bead from the WE-SUKW series, designed for EMI suppression in general electronic equipment. It provides a typical impedance of 425 Ω at 25 MHz and a maximum impedance of 580 Ω ±25% at 100 MHz. The component is rated for a maximum DC resistance of 12 mΩ and a rated current of 8.5 A at a temperature rise of 40 K.
This ferrite bead is qualified to AEC-Q200 Grade 1, making it suitable for automotive applications. It is RoHS compliant, REACH conform, halogen free, and has an MSL of 1 (unlimited). The operating temperature range is -55 °C to +125 °C.
The part is housed in a 3318 (8546 Metric) package with dimensions of 8.50 mm x 4.65 mm x 5.50 mm. It is designed for surface mount assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 10+ | $1.43 | $1.43 |
| 50+ | $1.34 | $1.34 |
| 100+ | $1.29 | $1.29 |
| 500+ | $1.24 | $1.24 |
| 1,000+ | $1.15 | $1.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
580 Ω ±25% at 100 MHz.
8.5 A maximum at ΔT = 40 K.
-55 °C to +125 °C.
Yes, AEC-Q200 Grade 1.
3318 (8546 Metric), 8.50 mm x 4.65 mm x 5.50 mm.
12 mΩ maximum.
