| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Curie Temperature | |
| Halogen Free | |
| Height (Max) | |
| Impedance (Nominal @ 25 MHz) | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

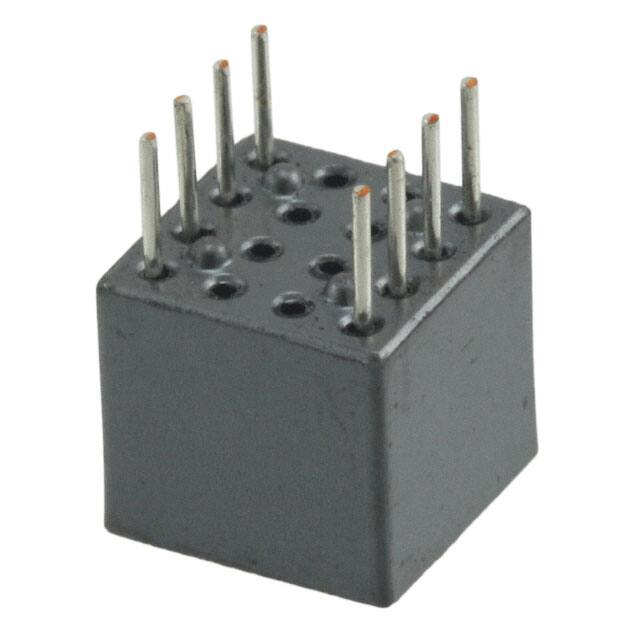

The 742730023 is a multiline EMI suppression ferrite from Würth Elektronik's WE-MLS series. It provides four independent lines of filtering in a single radial through-hole component, making it suitable for suppressing high-frequency noise in compact board designs.
The ferrite bead offers an impedance of 292 Ω ±25% at 25 MHz and 334 Ω ±25% at 100 MHz, with a Curie temperature of 140 °C. It operates across a temperature range from -55 °C to +125 °C, covering demanding automotive and industrial environments.
The component comes in a radial package with a maximum body size of 11.2 mm × 11.2 mm and a height of 5.30 mm. Lead spacing is 2.54 mm, allowing standard breadboard and PCB layouts. It is RoHS compliant (2011/65/EU & 2015/863), REACH conform, halogen free, and rated MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 10+ | $3.13 | $3.13 |
| 25+ | $2.84 | $2.84 |
| 40+ | $2.41 | $2.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to +125°C.
The impedance is 334 Ω ±25%.
The ferrite bead provides 4 lines of filtering.
It comes in a radial through-hole package with 2.54 mm lead spacing.
Yes, it is compliant with 2011/65/EU and 2015/863.
The Curie temperature is 140°C.
The impedance is 292 Ω ±25%.
