| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Design | |
| Halogen Free | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Inner Dimension | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Outer Dimension | |
| Outer Height | |
| Outer Width | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

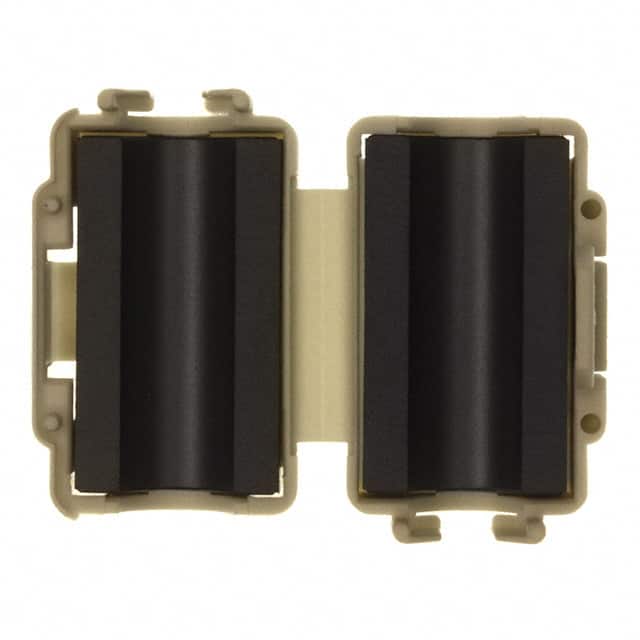

This is a Würth Elektronik 74271733 WE-STAR-FIX snap ferrite core for cable-mounted EMI suppression. It offers typical impedance of 246 Ω at 100 MHz (1 turn) and 755 Ω at 100 MHz (2 turns). The core is made from 4W620 material with initial permeability of 620 and has a Curie temperature of 150 °C. Mechanically it measures 35.1 mm length, 21.7 mm outer width, and 18.2 mm outer height, with an inner diameter of 8.0 mm accommodating cables from 4.5 to 8.0 mm. The design is hinged (snap-on) with a safety key release, allowing free-hanging installation. Operating temperature ranges from -25 °C to +105 °C, and it is rated UL94 V-0 for flammability. Environmental compliance includes RoHS, REACH, and halogen-free certification. Storage conditions are specified for original packaging (< 40 °C, < 75% RH) and for single parts (15-35 °C, 45-65% RH).
| Qty | Low | High |
|---|---|---|
| 1+ | $3.72 | $3.72 |
| 10+ | $3.66 | $3.66 |
| 38+ | $3.43 | $3.43 |
| 114+ | $3.31 | $3.31 |
| 266+ | $3.07 | $3.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25 °C to +105 °C
Yes, compliant with 2011/65/EU and 2015/863
246 Ω typical (±25%)
4.5 mm to 8.0 mm
4W620 with initial permeability 620
UL94 V-0
Free hanging with hinged snap-on design
