| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
152 pcs
|
152 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applicable Cable Diameter | |
| Curie Temperature | |
| Design | |
| Halogen Free | |
| Impedance @ Frequency | |
| Initial Permeability | |
| Inner Dimension | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Outer Dimension | |
| Plastic Housing Flammability Rating | |
| Tape & Reel | |
| Type |

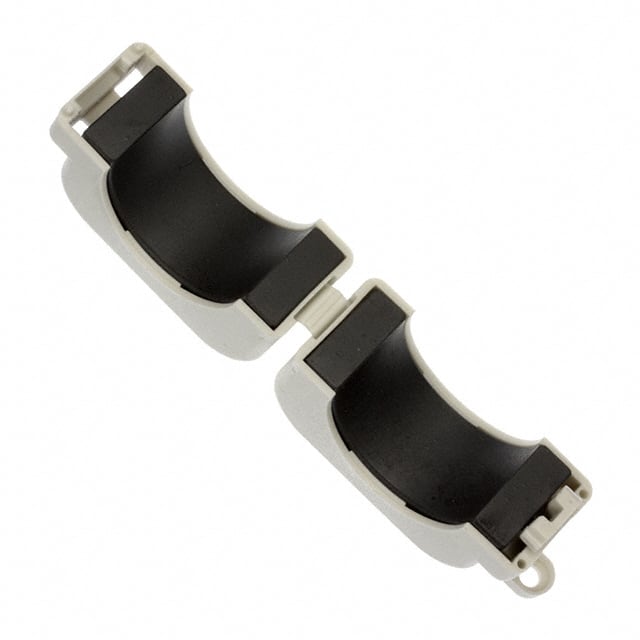

The Würth Elektronik 7427155 is a snap ferrite core from the WE-STAR-RING series. It features a round design with a hinged snap-on mechanism and requires a safety key for unlocking. The core is made of 4W620 material with an initial permeability of 620 and a Curie temperature of 150°C. It provides 112 Ohm impedance at 100 MHz and 54 Ohm at 25 MHz (1 turn, AWG26 test cable). The outer dimensions are 55.00 x 44.00 mm with an inner diameter of 27.00 mm and a length of 20.00 mm. It is designed for chassis mounting and can accommodate cables up to 27 mm in diameter. The operating temperature range is -50°C to +105°C. The plastic housing has a UL94 V-0 flammability rating. This component is RoHS, REACH, and Halogen Free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.56 | $7.56 |
| 10+ | $7.45 | $7.45 |
| 25+ | $7.37 | $7.37 |
| 50+ | $7.15 | $7.15 |
| 99+ | $6.95 | $6.95 |
| 264+ | $6.71 | $6.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to +105°C.
Yes, it is RoHS3 compliant (2011/65/EU & 2015/863).
112 Ohm ±25% with 1 turn, test cable AWG26, 100 mm.
27 mm.
4W620 ferrite material with initial permeability of 620.
Chassis mount with hinged snap-on design.
Yes, it conforms to JEDEC JS709B and IEC 61249-2-21.
