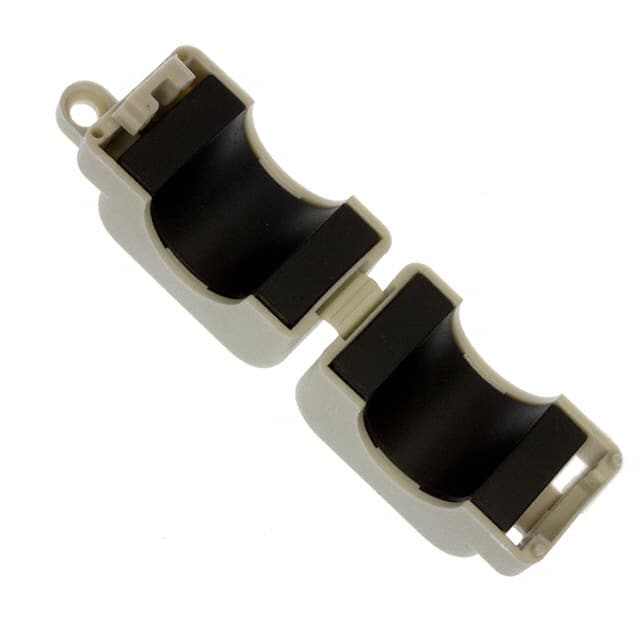

This is a WE-STAR-RING snap ferrite core from Würth Elektronik, designed for EMI suppression on cables. It features a hinged (snap-on) design with a safety key for secure locking.
Electrical specifications include impedance of 132 Ohm ±25 at 100 MHz and 68 Ohm ±25 at 25 MHz (1 turn, AWG26, 100 mm test cable). The core material is 4W620 with initial permeability of 620 typ.
Mechanical dimensions: outer dimension 43.00mm x 32.00mm, inner diameter 16.00mm, length 20.00mm. It is chassis mountable and has a UL94 V-0 flammability rating. Operating temperature range -50°C to +105°C.
The part is RoHS, REACH, and Halogen Free compliant. Storage conditions are specified for original packaging and single parts.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.54 | $6.54 |
| 10+ | $6.44 | $6.44 |
| 50+ | $6.00 | $6.00 |
| 99+ | $5.77 | $5.77 |
| 264+ | $5.33 | $5.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to +105°C.
Yes, compliant with 2011/65/EU & 2015/863.
132 Ohm ±25 (1 turn, AWG26, 100 mm test cable).
≤ 16 mm.
Chassis mount, hinged snap-on.
4W620 with initial permeability 620 typ.
UL94 V-0.
