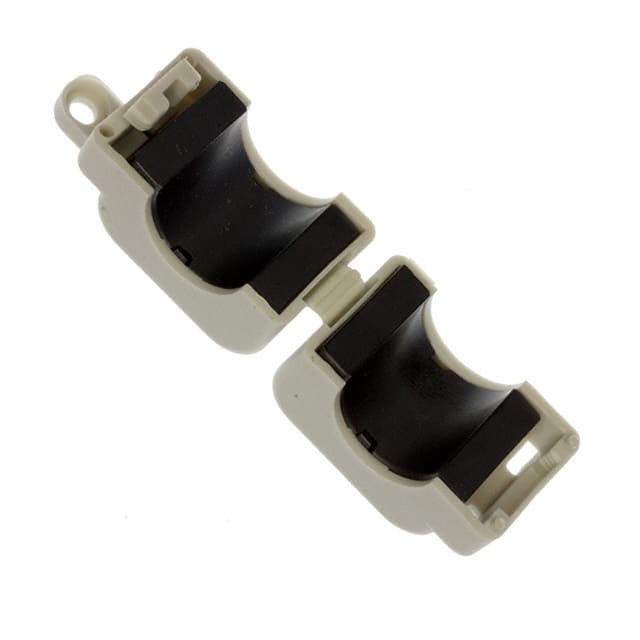

This is a round hinged snap-on ferrite core from Würth Elektronik, part of the WE-STAR-RING series. It features a safety key mechanism for secure locking. The core is made of 4W620 material with an initial permeability of 620 typ.
Electrical specifications include an impedance of 119 Ohm nominal at 100 MHz, with typical values of 60 Ohm at 25 MHz and 123 Ohm at 100 MHz (both ±25% tolerance). The operating temperature range is -50°C to +105°C, with a Curie temperature of 150°C typ.
Mechanical dimensions: outer dimensions 40.00mm x 30.00mm, inner diameter 14.50mm, length 20.00mm. It is designed for chassis mounting and accommodates cable diameters up to 14.5 mm. The plastic housing is grey with UL94 V-0 flammability rating.
Compliance: RoHS compliant (2011/65/EU & 2015/863), REACH conform, and halogen free per JEDEC JS709B and IEC 61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.85 | $5.85 |
| 10+ | $5.77 | $5.77 |
| 25+ | $5.68 | $5.68 |
| 50+ | $5.29 | $5.29 |
| 264+ | $5.09 | $5.09 |
| 528+ | $4.70 | $4.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to +105°C.
Yes, compliant with 2011/65/EU and 2015/863.
119 Ohm nominal, typical 123 Ohm ±25%.
40.00mm x 30.00mm (1.575" x 1.181").
Chassis mount.
4W620 with initial permeability 620 typ.
Up to 14.5 mm.
