| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
223 pcs
|
223 pcs | On Request | 1 | On Request | On Request | 25+ | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter Range | |
| Curie Temperature | |
| Design | |
| Flammability Rating | |
| Halogen Free | |
| Height | |
| Impedance @ Frequency | |
| Initial Permeability | |
| Inner Dimension | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature Range | |
| Outer Dimension | |
| Storage Humidity Range | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Type | |
| Width |

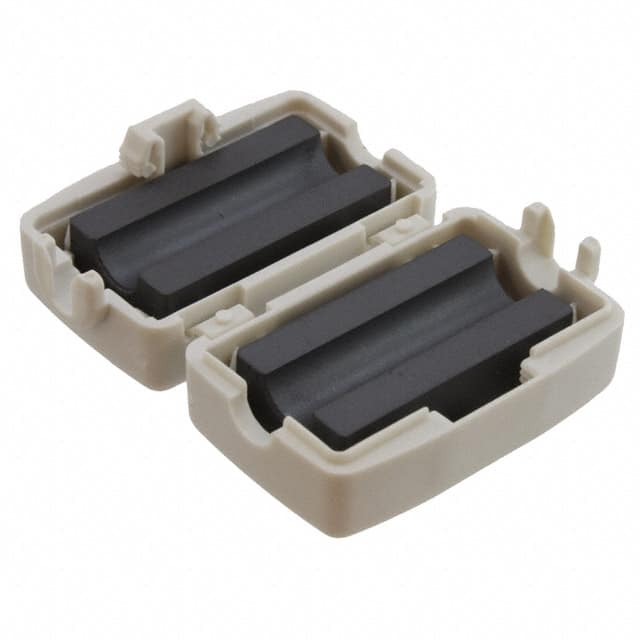

This is a WE-STAR-TEC snap ferrite from Würth Elektronik, designed for EMI suppression on cables. It features a hinged snap-on design with safety key technology for secure locking.
Electrical specifications include typical impedance of 175Ω at 25MHz and 316Ω at 100MHz (1 turn, AWG26, 100mm test). Initial permeability is 620 typ. Operating temperature range -50°C to +105°C.
Mechanical: round shape, free hanging mounting, hinged design with key required. Outer dimensions 23.70mm x 18.20mm, inner diameter 5.00mm, cable diameter range 3.5-5mm. Material 4W620 with UL94 V-0 flammability rating.
Compliance: RoHS, REACH, Halogen Free conform. Storage conditions <40°C and <75% rH in original packaging.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.75 | $4.75 |
| 10+ | $4.68 | $4.68 |
| 38+ | $4.54 | $4.54 |
| 114+ | $4.33 | $4.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-50°C to +105°C
Yes, compliant with 2011/65/EU&2015/863.
316 Ω ±25% typical.
3.5 to 5 mm.
Free hanging, hinged snap-on design with key required.
UL94 V-0.
4W620.
