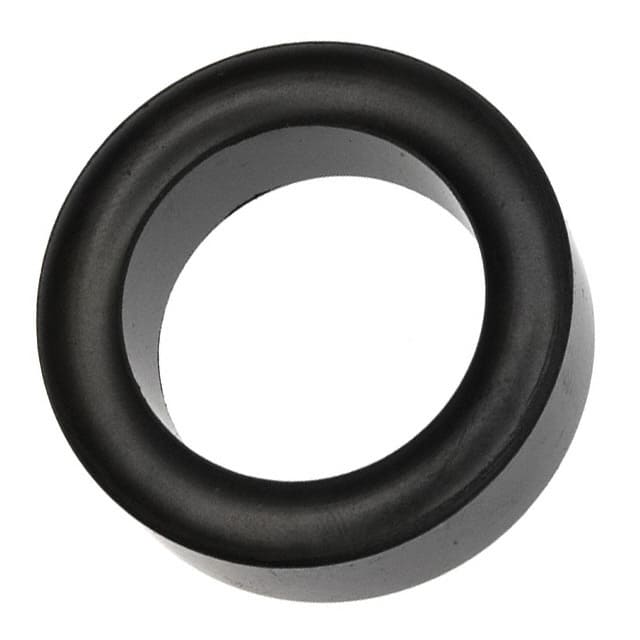

7427015 Würth Elektronik 7427015 is a round solid ferrite core made of 4W620 material with 620 initial permeability. It has a 40.6 mm outer diameter, 27.4 mm inner diameter, and 15.0 mm length.
Mfr Part #:

7427015

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 7427015 is a round solid ferrite core made of 4W620 material with 620 initial permeability. It has a 40.6 mm outer diameter, 27.4 mm inner diameter, and 15.0 mm length.
✓ Total Stock: 297 pcs
$ Price Range: $3.31 - $3.96

7427015 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
HMB Electronics LLC ✓
Non-Authorised Inventory information
297 pcs
On Request
297 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7427015 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Design
Halogen Free
Impedance @ Frequency
Industrial Grade
Inner Dimension
Length
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Outer Dimension
Storage Conditions
Storage Temperature
Tape & Reel
Type
View Similar Products (0)

7427015 Description

Short technical summary and product information.

The Würth Elektronik 7427015 is a WE-TOF series round solid ferrite core designed for EMI suppression in cable applications. It measures 40.6 mm outer diameter, 27.4 mm inner diameter, and 15.0 mm length, and accepts cables up to 26.9 mm diameter. The core is made of 4W620 material with a typical initial permeability of 620 and a Curie temperature of 150 °C.



Electrical characteristics include an impedance of 50 Ω ±25% at 25 MHz and 82 Ω ±25% at 100 MHz, tested with 1 turn of AWG26 wire at 50 mm length. The operating temperature range is -25 °C to +125 °C, and storage conditions are below 40 °C and less than 75% relative humidity.



This component is free hanging with no leads, suitable for mounting over cables. It is RoHS3 compliant (2011/65/EU & 2015/863), REACH conform or declared, halogen free per JEDEC JS709B, and has a moisture sensitivity level of 1 (unlimited).

7427015 Quick Information

Product Type: EMI Suppression Ferrite Core
Series: WE-TOF
Canonical Name: WE-TOF EMI Suppression Toroidal Ferrite Core 7427015
Subcategory: Toroidal Ferrite Core

7427015 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: Conform or declared
Lead Free: Yes

7427015 Estimated Pricing

Qty Low High
1+ $3.96 $3.96
10+ $3.88 $3.88
60+ $3.74 $3.74
120+ $3.60 $3.60
270+ $3.31 $3.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

7427015 Features

  • Round solid toroidal ferrite core design.
  • 4W620 material with 620 initial permeability.
  • 50 Ω impedance at 25 MHz typical.
  • 82 Ω impedance at 100 MHz typical.
  • RoHS3, REACH, and halogen free compliant.

7427015 Applications

  • EMI suppression on power and signal cables.
  • Common-mode noise filtering in electronic equipment.
  • Snap-on ferrite core for cable assemblies.
  • Ideal for automotive and industrial electronic systems.

7427015 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the 7427015 ferrite core?

The operating temperature range is -25 °C to +125 °C.

What is the impedance of the 7427015 at 100 MHz?

The impedance at 100 MHz (1 turn, AWG26, 50 mm) is 82 Ω ±25% typical.

Is the 7427015 RoHS compliant?

Yes, it is RoHS3 compliant per directives 2011/65/EU and 2015/863.

What is the moisture sensitivity level (MSL) of the 7427015?

The moisture sensitivity level is MSL 1 (unlimited).

What material is the 7427015 ferrite core made of?

The core is made of 4W620 material with a typical initial permeability of 620.
