| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applicable Cable Diameter | |
| Automotive Grade | |
| Cable Diameter (Max) | |
| Curie Temperature | |
| Design | |
| Halogen Free | |
| Impedance (Typical @ 1 Turn, AWG 26, 50 mm, +20 °C, 33% rH) | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Initial Permeability | |
| Inner Dimension | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Outer Dimension | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

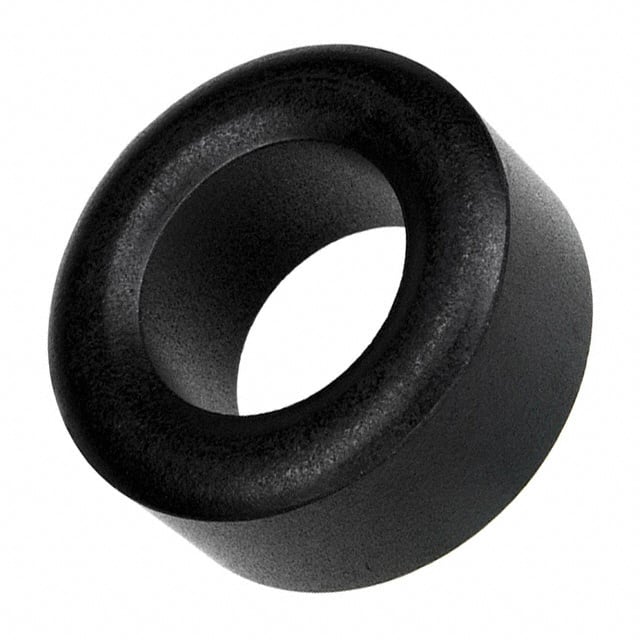

The Würth Elektronik 7427013 is a solid round ferrite core designed for EMI suppression on cables. Made from 3W800 nickel-zinc ferrite material with an initial permeability of 800, it provides effective attenuation of conducted noise. The core measures 28.0mm outer diameter, 16.0mm inner diameter, and 13.0mm length, allowing it to accommodate cables up to 15.5mm diameter. It offers a typical impedance of 89Ω at 100 MHz (1 turn) and 45Ω at 25 MHz (1 turn), tested with AWG26, 50mm cable at +20°C and 33% rH. The core is free hanging for easy installation on cables. Operating temperature ranges from -25°C to +125°C with a Curie temperature of 140°C minimum. The component is RoHS, REACH, and halogen-free compliant. Storage conditions are below 40°C and 75% rH.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.68 | $1.68 |
| 10+ | $1.61 | $1.61 |
| 50+ | $1.50 | $1.50 |
| 100+ | $1.40 | $1.40 |
| 500+ | $1.35 | $1.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
Free Hanging.
89Ω typical ±25% for 1 turn (AWG26, 50mm cable).
3W800 nickel-zinc ferrite.
Outer diameter 28mm, inner diameter 16mm, length 13mm.
15.5 mm.
