| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,083 pcs
|
10083 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10,083 pcs
|
10083 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter | |
| Design | |
| Halogen Free | |
| Impedance @ Frequency | |
| Inner Dimension | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature Range | |
| Outer Dimension | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

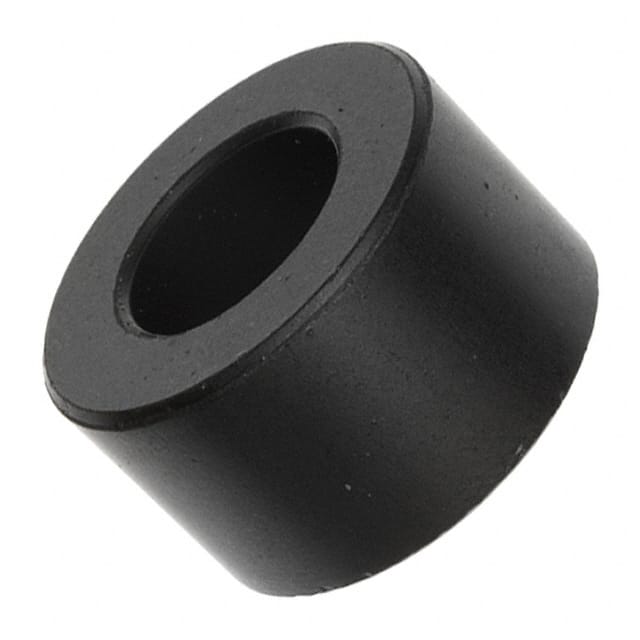

The Würth Elektronik 7427012 is a round solid ferrite core from the WE-TOF series, designed for cable EMI suppression. It has a free hanging mounting style and accommodates cables up to 11.8 mm diameter. The core measures 23.5 mm outer diameter, 12.6 mm inner diameter, and 14.0 mm length.
Electrically, the core provides a typical impedance of 103 Ω ±25% at 100 MHz (tested with 1 turn, AWG26, 50 mm cable) and 72 Ω ±25% at 25 MHz. The material is 4W620 ferrite with an initial permeability of 620 µi and a Curie temperature of 150 °C. Operating temperature range is -25°C to +125°C, with storage conditions below 40°C and 75% rH.
This ferrite core is suitable for common-mode noise suppression on power and signal cables in various electronic equipment. It is RoHS, REACH, and halogen-free compliant, with MSL 1 rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.44 | $1.44 |
| 10+ | $1.41 | $1.41 |
| 50+ | $1.36 | $1.36 |
| 100+ | $1.31 | $1.31 |
| 252+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-25°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
103 Ω typical ±25% (1 turn, AWG26, 50 mm test cable).
23.5 mm.
11.8 mm.
