| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Diameter (Max) | |
| Curie Temperature | |
| Design | |
| Halogen Free | |
| Impedance (Nominal @ 1 turn, AWG 26, 100 mm) | |
| Impedance @ Frequency | |
| Initial Permeability | |
| Inner Dimension | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Outer Dimension | |
| Tape & Reel | |
| Type |

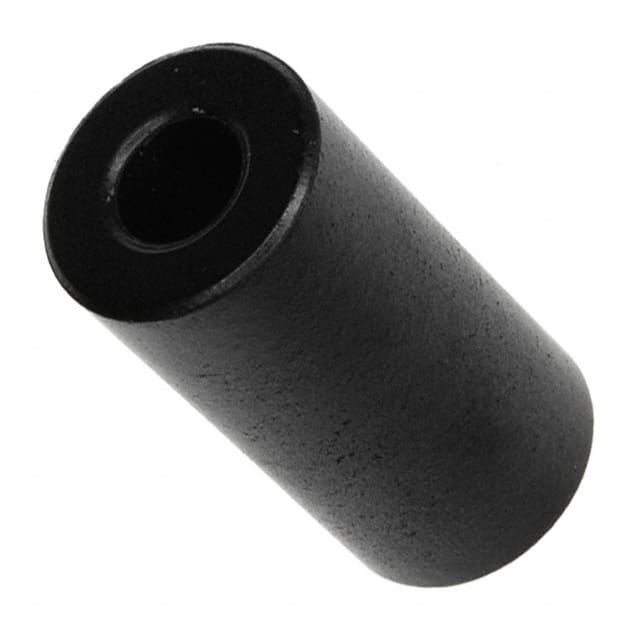

The Würth Elektronik 74270045 is a WE-AFB EMI suppression axial ferrite bead designed for cable-mounted noise filtering. It features a solid round construction with an inner diameter of 7.20 mm, outer diameter of 14.20 mm, and length of 25.00 mm, accommodating cables up to 7 mm in diameter.
Electrically, this ferrite core provides an impedance of 211 Ohm at 100 MHz (1 turn, AWG26, 100 mm test cable) and 131 Ohm at 25 MHz. The core material is 4W620 with an initial permeability of 620 and a Curie temperature of 150 °C. It operates over a temperature range of -25 °C to +125 °C.
The component is RoHS3 compliant (2011/65/EU & 2015/863), REACH conform, and halogen free per JEDEC JS709B and IEC 61249-2-21. It is designed for free hanging mounting and is suitable for general electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.35 | $1.35 |
| 10+ | $1.33 | $1.33 |
| 50+ | $1.28 | $1.28 |
| 100+ | $1.19 | $1.19 |
| 512+ | $1.14 | $1.14 |
| 1,024+ | $1.05 | $1.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance is 211 Ohm (nominal) at 100 MHz with 1 turn, AWG26, 100 mm test cable.
The operating temperature range is -25 °C to +125 °C.
Yes, it is RoHS3 compliant per 2011/65/EU & 2015/863.
The inner diameter is 7.20 mm.
The maximum cable diameter is 7 mm.
The core material is 4W620 with an initial permeability of 620.
