| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Cable Diameter (Max) | |
| Curie Temperature | |
| Design | |
| Halogen Free | |
| Impedance (Typical @ 1 turn, test cable AWG 26, 50 mm @ 100 MHz) | |
| Impedance (Typical @ 1 turn, test cable AWG 26, 50 mm @ 25 MHz) | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Initial Permeability | |
| Inner Dimension | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Outer Dimension | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Type |

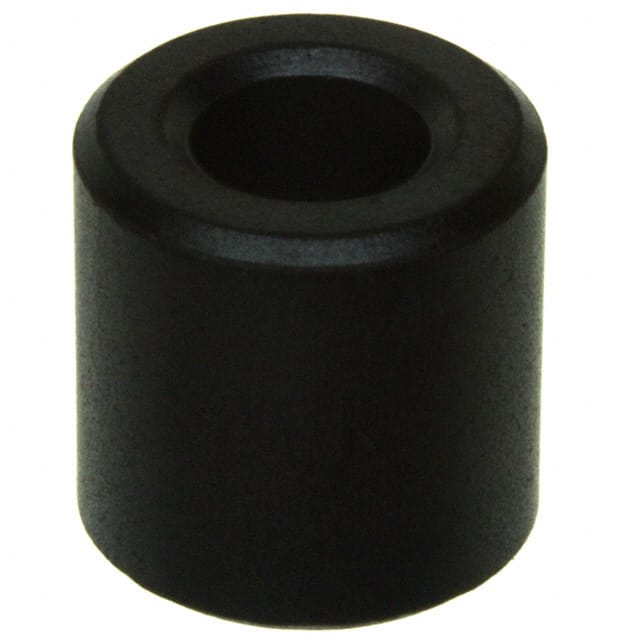

The 74270033 is a solid ferrite bead from Würth Elektronik's WE-AFB series, designed for EMI suppression on cables. It features a round shape with outer diameter 9.50 mm and inner diameter 4.75 mm, suitable for cables up to 4.4 mm diameter. The bead is mounted by free hanging (snap-on or slide-on). Electrical specifications include a typical impedance of 47 Ohm at 25 MHz and 68 Ohm at 100 MHz (1 turn, test cable AWG26, 50 mm). The material is 3W800 with initial permeability of 800 and Curie temperature of 140°C. Operating temperature range is -25°C to +125°C. The bead is RoHS, REACH, and Halogen-Free compliant. It is suitable for general electronic equipment, but not for safety-critical applications without specific agreement.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.69 | $0.69 |
| 10+ | $0.68 | $0.68 |
| 50+ | $0.66 | $0.66 |
| 100+ | $0.61 | $0.61 |
| 500+ | $0.59 | $0.59 |
| 2,500+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
68 Ohm ±25% typical at 100 MHz with 1 turn.
-25°C to +125°C.
Yes, compliant with 2011/65/EU & 2015/863.
Free hanging (snap-on or slide-on).
9.50 mm (0.374 inches).
4.4 mm.
3W800 with initial permeability of 800.
