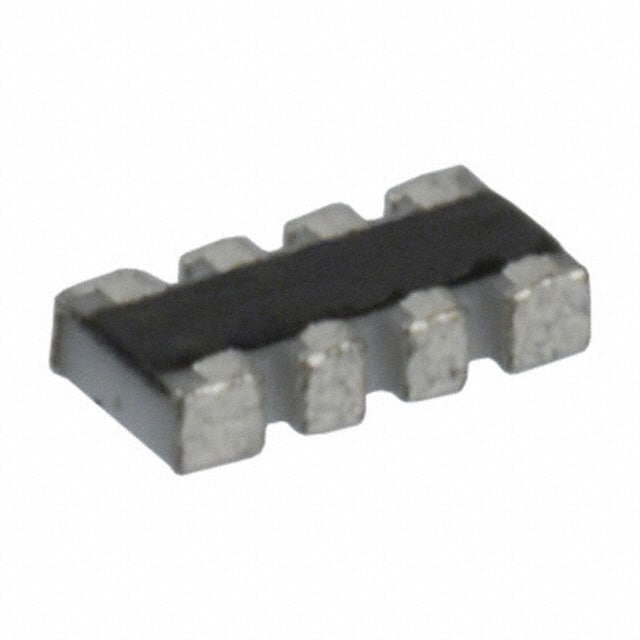

741X083103JP The CTS 741X083103JP is a 4-element resistor network with a resistance of 10k Ohm and a tolerance of ±5%. It is designed for surface mount applications.
Mfr Part #:

741X083103JP

Available from 1 distributors
Mfr Name: CTS Resistor Products
CTS Resistor Products
The CTS 741X083103JP is a 4-element resistor network with a resistance of 10k Ohm and a tolerance of ±5%. It is designed for surface mount applications.
✓ Total Stock: 20,000 pcs
$ Price Range: $0.05

741X083103JP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

741X083103JP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC-Q200 Compliant
Applications
Circuit Type
Height
Length
Mounting Type
Number of Pins
Number of Resistors
Operating Temperature
Power Per Element
Resistance
Resistance (Ohms)
Storage Temperature
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

741X083103JP Description

Short technical summary and product information.

The CTS 741X083103JP is a chip resistor array featuring four isolated resistor elements, each rated for 63mW. It offers a resistance value of 10k Ohm with a tolerance of ±5% and a temperature coefficient of ±200ppm/°C.



This component is constructed using thick film technology and has leadless surface mount construction with convex, long side terminations. The package size is 0804, with dimensions of 2.00mm x 1.00mm and a height of 0.55mm. It operates within a temperature range of -55°C to 125°C.



Applications for this resistor array include data communications, image processing, medical equipment, networking, pull-up/pull-down logic gates, DDR SDRAM, MDDR, and DRAM. It is AEC-Q200 compliant, making it suitable for automotive applications. The device is supplied in tape and reel packaging.

741X083103JP Quick Information

Product Type: Resistor Network
Series: 74x Series
Canonical Name: 4-Element Isolated Resistor Array
Subcategory: Chip Resistor Array

741X083103JP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

741X083103JP Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

741X083103JP Features

  • Four isolated resistor elements.
  • 10k Ohm resistance with ±5% tolerance.
  • 0804 surface mount package.
  • AEC-Q200 compliant for automotive use.
  • Wide operating temperature range.

741X083103JP Applications

  • Suitable for data communications.
  • Used in image processing systems.
  • Applicable for medical equipment.
  • Ideal for networking applications.
  • Supports DDR SDRAM and DRAM.

741X083103JP FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the 741X083103JP resistor network?

The resistance value is 10k Ohm.

What is the tolerance of the 741X083103JP resistor network?

The tolerance is ±5%.

How many resistor elements are in the 741X083103JP?

There are 4 resistor elements.

What is the circuit configuration of the 741X083103JP?

The circuit configuration is isolated.

What is the package type for the 741X083103JP?

The package type is 0804, Convex, Long Side Terminals.

Is the 741X083103JP AEC-Q200 compliant?

Yes, the 741X083103JP is AEC-Q200 compliant.
