| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200,000 pcs
|
200000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

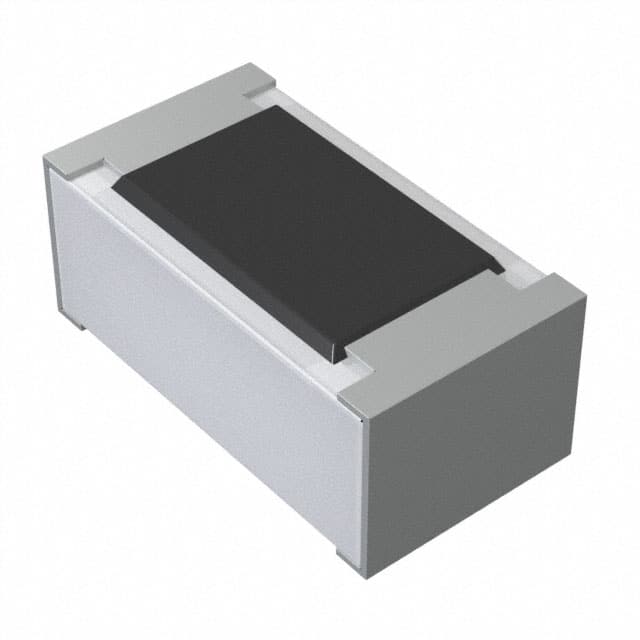

The CTS 73L2R47J is a surface-mount chip resistor from the 73Lx & 73Ex Series, specifically designed for accurate current detection and limiting.
This thick film resistor offers a resistance value of 470 milliohms (0.47 Ohms) with a tolerance of ±5%. It has a power rating of 0.1W (1/10W) and an operating temperature range of -55°C to 125°C. The component features a standard EIA 0603 package size (1608 metric) with matte tin terminal finish, making it reflow capable.
Key features include its current sense capability, thick film construction, and EIA standard package. The operating temperature range and robust construction make it suitable for various industrial applications.
Applications include current detection, current limiting, regulated battery circuits, motor control, power supplies, hard disk drives, inverters/converters, industrial equipment, and infotainment systems. Its compact size and surface-mount design facilitate integration into modern electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 73L2R47J resistor has a resistance value of 470 milliohms.
The tolerance of the 73L2R47J resistor is ±5%.
The power rating of the 73L2R47J resistor is 0.1W (1/10W).
The operating temperature range for the 73L2R47J resistor is -55°C to 125°C.
The 73L2R47J resistor is available in the 0603 (1608 Metric) package size.
The 73L2R47J resistor is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the 73L2R47J resistor is 1.
