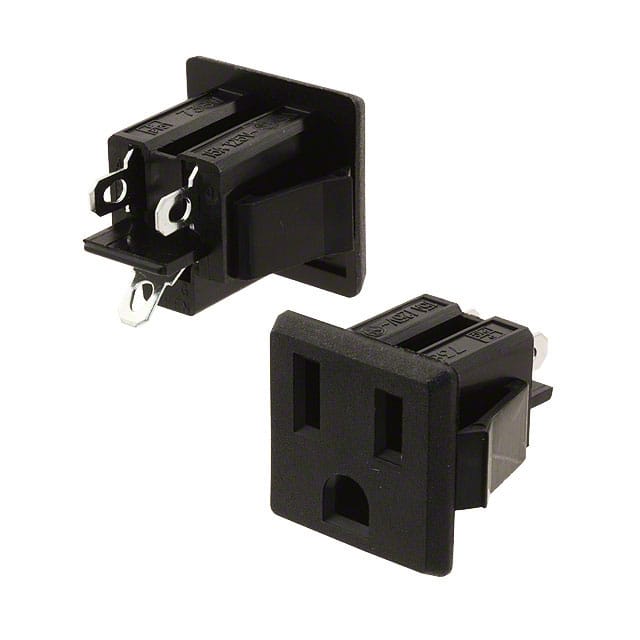

738W-X2/03 The Qualtek 738W-X2/03 is a NEMA 5-15R panel mount receptacle with female sockets, rated for 15A at 125VAC. It features snap-in mounting and quick connect terminals.
Mfr Part #:

738W-X2/03

Available from 1 distributors
Mfr Name: Qualtek
Qualtek
The Qualtek 738W-X2/03 is a NEMA 5-15R panel mount receptacle with female sockets, rated for 15A at 125VAC. It features snap-in mounting and quick connect terminals.
✓ Total Stock: 100 pcs

738W-X2/03 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

738W-X2/03 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Connector Style
Connector Type
Current Rating (Amps)
Material Flammability Rating
Mounting Type
Number of Positions
Panel Cutout Dimensions
Panel Thickness
Termination
Voltage Rating
View Similar Products (0)

738W-X2/03 Description

Short technical summary and product information.

The Qualtek 738W-X2/03 is a NEMA 5-15R AC power receptacle designed for panel mount applications. It features a snap-in mounting method for secure installation into panels with a thickness range of 0.79mm to 2.00mm, requiring a rectangular cutout of 26.00mm x 22.00mm.



This receptacle is rated for 15A at 125VAC and has 3 positions with female socket contacts. Termination is via quick connect tabs sized 0.189" (4.8mm), enabling fast and reliable wiring connections. The insulator body is made from nylon material with a UL94 V-0 flammability rating, ensuring high resistance to ignition.



The 738W-X2/03 carries approvals from CSA, cUL, and UL, and is RoHS compliant. Its maximum operating temperature is 105°C, making it suitable for a variety of indoor power distribution applications.

738W-X2/03 Quick Information

Product Type: AC Power Receptacle
Canonical Name: NEMA 5-15R Panel Mount Receptacle, Female Sockets, 15A, 125VAC
Subcategory: Plugs and Receptacles

738W-X2/03 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

738W-X2/03 Features

  • NEMA 5-15R receptacle with female sockets.
  • Rated for 15A at 125VAC operation.
  • Snap-in panel mount for easy installation.
  • Quick connect 0.189" (4.8mm) terminals.
  • UL94 V-0 rated nylon housing material.

738W-X2/03 Applications

  • Ideal for AC power entry in equipment.
  • Used in power distribution units and enclosures.
  • Suitable for industrial control panels.
  • Common in computer and networking equipment.

738W-X2/03 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 738W-X2/03?

The current rating is 15 A.

What is the voltage rating of the 738W-X2/03?

The voltage rating is 125 VAC.

What type of mounting does the 738W-X2/03 use?

It uses panel mount with snap-in mounting.

What is the connector style of the 738W-X2/03?

The connector style is NEMA 5-15R.

What is the flammability rating of the 738W-X2/03 housing?

The material flammability rating is UL94 V-0.

What approvals does the 738W-X2/03 have?

It has CSA, cUL, and UL approvals.

What is the maximum operating temperature of the 738W-X2/03?

The maximum operating temperature is 105 °C.
