| Category | |
| Manufacturer Name | |
| Actuator Color | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Rating |

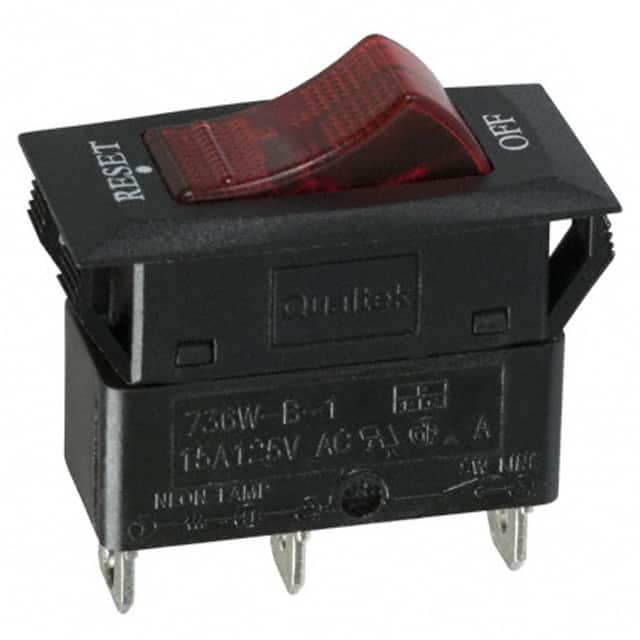

This Qualtek 736W-B/101 is a thermal circuit breaker rated for 15A at 125VAC. It features a durable black body with a red rocker actuator and integrated red illumination, making it suitable for applications where visual status indication is important.
The breaker is designed for panel mounting and has a panel cutout size of 28.5mm x 14mm. Its operating temperature range is from -10°C to +60°C, providing reliable performance in various environmental conditions. The unit is RoHS compliant.
Key specifications include a single pole design and a thermal trip mechanism. The datasheet provides detailed trip time curves versus amperes at +25°C and trip time factors across different temperatures.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 15A.
The voltage rating is 125V AC.
It uses a thermal breaker mechanism.
It is designed for panel mounting.
The operating temperature range is -10°C to +60°C.
Yes, it is RoHS3 Compliant.
