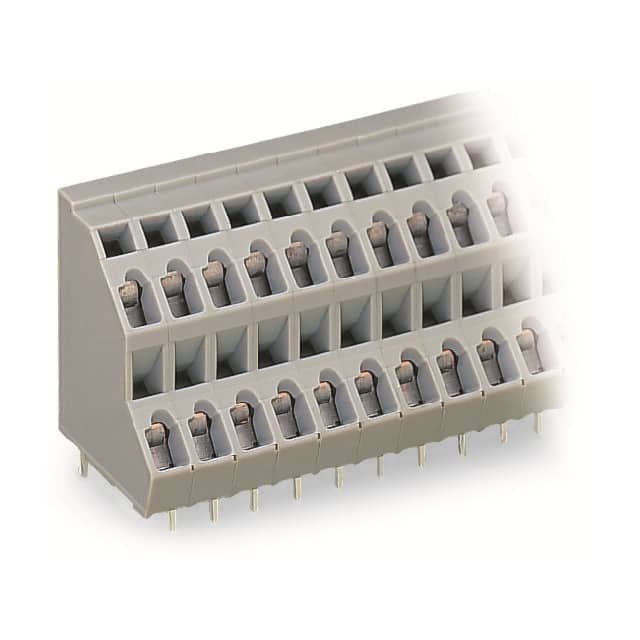

736-108 Wago 736-108 is a double-deck PCB terminal block with 8 positions per level, 2 levels, and 5.00mm pitch. It features screwless spring cage termination and is rated for 10A and 300V.
Mfr Part #:

736-108

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 736-108 is a double-deck PCB terminal block with 8 positions per level, 2 levels, and 5.00mm pitch. It features screwless spring cage termination and is rated for 10A and 300V.
✓ Total Stock: 7 pcs

736-108 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

736-108 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Current Rating
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Pitch
Positions Per Level
SVHC Present
Termination Style
Voltage
Voltage Rating
Wire Gauge
Wire Termination
View Similar Products (0)

736-108 Description

Short technical summary and product information.

The Wago 736-108 is a double-deck PCB terminal block designed for wire-to-board connections. It offers 8 positions per level across 2 levels, providing 16 total connection points. The terminal block uses a screwless spring cage (tension clamp) termination, enabling fast and reliable wire connections without tools.



Key electrical specifications include a current rating of 10 A and a voltage rating of 300 V. It accepts wire gauges from 12 to 28 AWG, making it suitable for a range of signal and power applications. The mating orientation is at a 45° (135°) angle with the board, allowing for space-saving layouts.



The component is through-hole mounted with a 5.00mm pitch between positions. It comes in a gray color. The double-deck design increases density while maintaining a compact footprint. It is RoHS3 compliant and has an MSL of 1 (unlimited).

736-108 Quick Information

Product Type: Wire-to-Board Terminal Block
Canonical Name: Wago 736-108 Double-Deck PCB Terminal Block, 8 Positions, 2 Levels, 5.00mm Pitch, Gray, Screwless Spring Cage
Subcategory: Wire-to-Board Terminal Block

736-108 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

736-108 Features

  • Double-deck design with 8 positions per level.
  • Screwless spring cage tension clamp termination.
  • Rated for 10A current and 300V voltage.
  • Accepts 12 to 28 AWG wire range.
  • 45° (135°) mating orientation with board.

736-108 Applications

  • Ideal for industrial control panel wiring.
  • Used in building automation and HVAC systems.
  • Suitable for lighting and power distribution.
  • Compact solution for high-density PCB layouts.

736-108 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Wago 736-108 terminal block have?

8 positions per level, 2 levels, for 16 total positions.

What is the pitch of the Wago 736-108?

5.00 mm (0.197 inches)

What is the current rating of the 736-108?

10 A

What is the voltage rating of the 736-108?

300 V

What is the mounting type for the 736-108?

Through Hole

What termination style does the 736-108 use?

Screwless spring cage (tension clamp) termination.

What wire gauge range does the 736-108 accept?

12 to 28 AWG
