| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,251 pcs
|
8251 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| China RoHS 2 | |
| Color | |
| Contact Finish | |
| Contact Material | |
| EU ELV | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

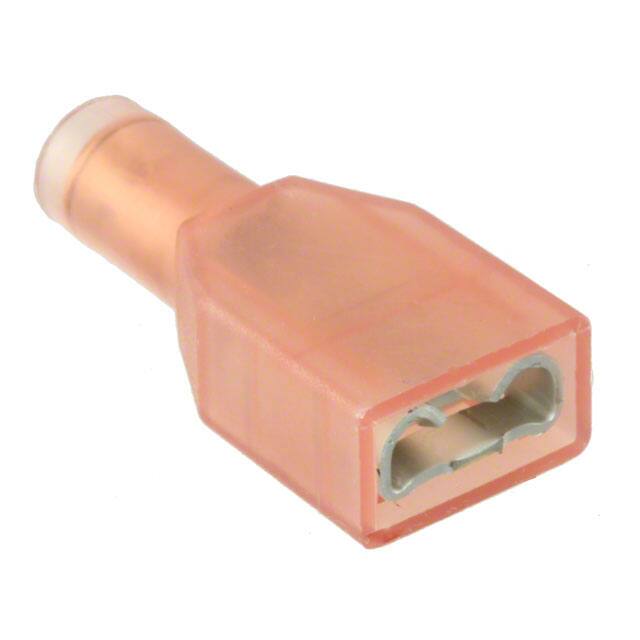

The TE Connectivity part 735279 is a female quick disconnect terminal from the FASTON series, designed for reliable electrical connections. It accepts wire gauges from 18.5 to 22 AWG and features a 0.250-inch (6.35mm) tab width with 0.032-inch thickness.
The terminal is fully insulated with a red housing and uses a crimp termination method, suitable for free hanging (in-line) mounting. The contact is made of brass with a tin finish, ensuring good conductivity and corrosion resistance.
This component meets multiple environmental compliance standards including EU RoHS, REACH, EU ELV, and China RoHS 2. It is classified as low halogen and is free from BFR/CFR/PVC. The product is intended for quick disconnect applications in wire-to-wire or wire-to-board configurations.
0.250 inches (6.35 mm).
18.5 to 22 AWG.
Free hanging (in-line).
Crimp.
Yes, fully insulated.
Red.
Yes, compliant with EU RoHS Directive 2011/65/EU including Delegated Directive 2015/863/EU.
