| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,800 pcs
|
25800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

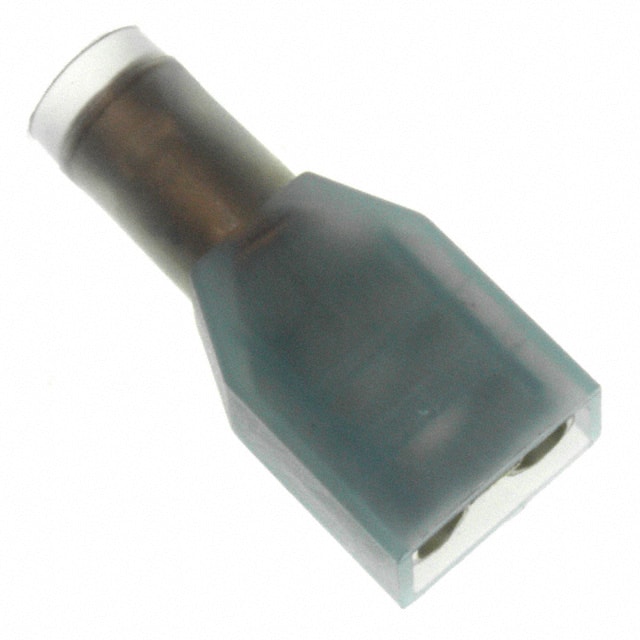

The TE Connectivity 735159 is a fully insulated FASTON female quick disconnect receptacle. It accepts 13-15 AWG wire and features a 0.250" (6.35mm) tab width with a 0.032" (0.81mm) tab thickness. The termination method is crimp, and the contact is made of brass with a tin finish for good conductivity and corrosion resistance. The housing is fully insulated and colored blue for easy identification. This receptacle is designed for free hanging (in-line) mounting and has an overall length of 21.49mm (0.846"). It is part of the FASTON family of quick connect terminals, widely used in automotive, appliance, and industrial applications requiring reliable, quick-disconnect connections.
Free hanging (in-line) mounting.
13-15 AWG.
0.250" (6.35mm).
Brass contact with tin finish.
Yes, it is fully insulated.
Crimp termination.
Blue.
