| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
78 pcs
|
78 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Insulation Resistance | |
| Mounting Type | |
| Terminal Type |

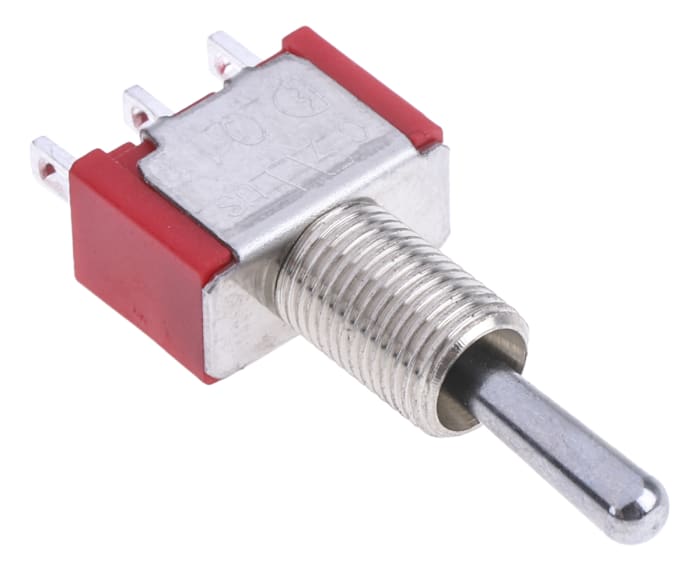

The RS PRO 734-7123 is a panel mount toggle switch with an On-Off-On operating configuration and a Single Pole Double Throw (SPDT) contact arrangement. It features solder terminals for secure connections.
This switch is rated for a maximum DC voltage of 28V and a maximum AC voltage of 112V, with a contact current rating of 5A. The operating temperature range is from -30°C to 85°C. The panel cutout size required is 6.35 mm, and the actuator has a length of 10.41mm. The actuator is constructed from chrome-plated brass.
With a mechanical life of 40,000 cycles, this miniature toggle switch is suitable for various applications requiring reliable switching. It also offers a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch is rated for 5A at 28V dc and 5A at 112V ac.
The switch is panel mount with solder terminals.
The operating temperature range is -30°C to 85°C.
The switch has SPDT (Single Pole Double Throw) contact configuration.
The switch operation is On-Off-On.
The mechanical life is 40,000 cycles.
The panel cutout size is 6.35 mm.
