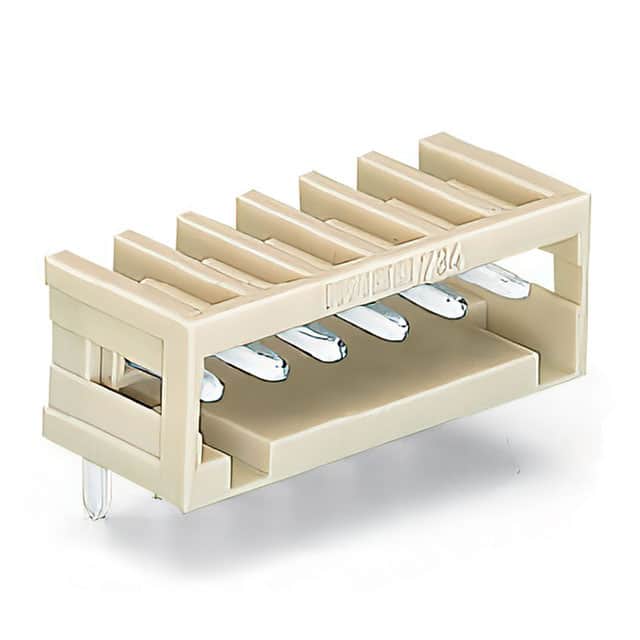

734-165 Wago 734-165 is a 5-position THT male header with 3.5mm pitch, right angle orientation, and shrouded design. It features tin-plated contacts and is rated for 300V and 10A.
Mfr Part #:

734-165

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 734-165 is a 5-position THT male header with 3.5mm pitch, right angle orientation, and shrouded design. It features tin-plated contacts and is rated for 300V and 10A.
✓ Total Stock: 100 pcs

734-165 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 20 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

734-165 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Finish
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Operating Temperature Range
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

734-165 Description

Short technical summary and product information.

The Wago 734-165 is a through-hole male header from the MCS MINI series. It features 5 positions with a 3.5mm pitch and a right-angle orientation. The header is shrouded on four sides, providing 100% protection against mismating. The solder pins measure 1.0 x 1.0 mm. The housing is light gray. Electrical ratings include 300V voltage and 10A current per UL 1059 and CSA standards. The operating temperature range is -60°C to 100°C. This header is suitable for PCB interconnection in terminal block applications. The through-hole mounting ensures reliable mechanical attachment. The right-angle design allows for low-profile connections. The tin contact finish provides good solderability and conductivity.

734-165 Quick Information

Product Type: THT Male Header
Canonical Name: Wago 734-165 THT Male Header, 5 Position, 3.5mm Pitch, Right Angle, Shrouded
Subcategory: Terminal Block Headers

734-165 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

734-165 Features

  • 5 positions with 3.5mm pitch.
  • Right angle through-hole mounting.
  • Shrouded header for mismating protection.
  • Rated for 300V and 10A.
  • Tin-plated contacts for reliable soldering.

734-165 Applications

  • PCB interconnection in terminal blocks.
  • Industrial control and automation systems.
  • Low-profile right-angle connections.
  • Protection against mismating in multi-pole connectors.

734-165 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 734-165 have?

5 positions.

What is the pin spacing of the 734-165?

3.5 mm (0.138 inches).

What is the current rating of the 734-165?

10 A per UL 1059 and CSA.

What is the voltage rating of the 734-165?

300 V per UL 1059 and CSA.

What is the mounting type of the 734-165?

Through hole.

What is the operating temperature range?

-60°C to 100°C.

What is the header orientation?

90°, right angle.
