| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
700 pcs
|
700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

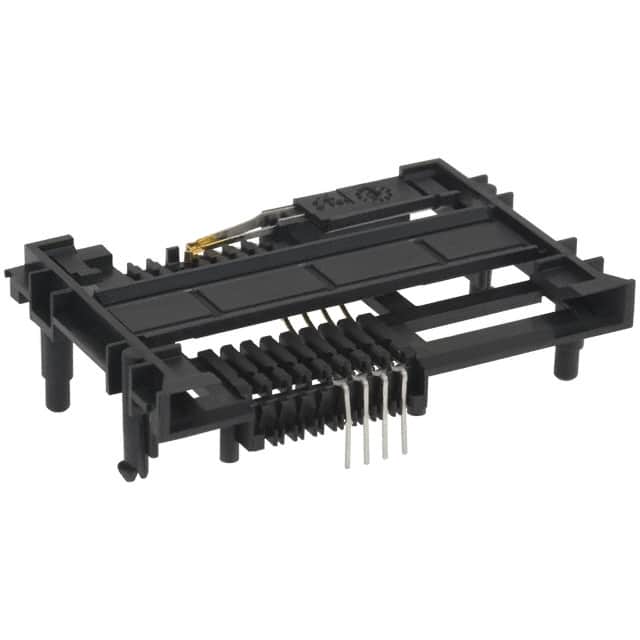

The Amphenol ICC 7334L2622F13LF is a smart card connector designed for secure card insertion and removal. It features 10 positions (8+2) with a push-in, pull-out mechanism for reliable card cycling. The connector is mounted using through hole, right angle termination, with a height above board of 12.63 mm. Contact finish is Gold, GXT™ for enhanced durability and signal integrity.
The connector includes built-in board guide, board lock, and a switch for card detection. The board guide ensures accurate card alignment during insertion, while the board lock provides secure attachment to the PCB. The switch enables system control based on card presence.
This connector is suitable for applications requiring a robust interface between a smart card and the host electronics. Its right angle orientation allows for space-efficient layouts on the PCB. The through hole mounting offers strong mechanical stability. The insertion and removal method is push in, pull out, supporting standard smart card usage.
The connector has 10 positions (8 + 2).
Through hole, right angle.
12.63 mm (0.497 inches).
Push in, pull out.
Board guide, board lock, and switch.
Gold, GXT™.
Smart Card.
