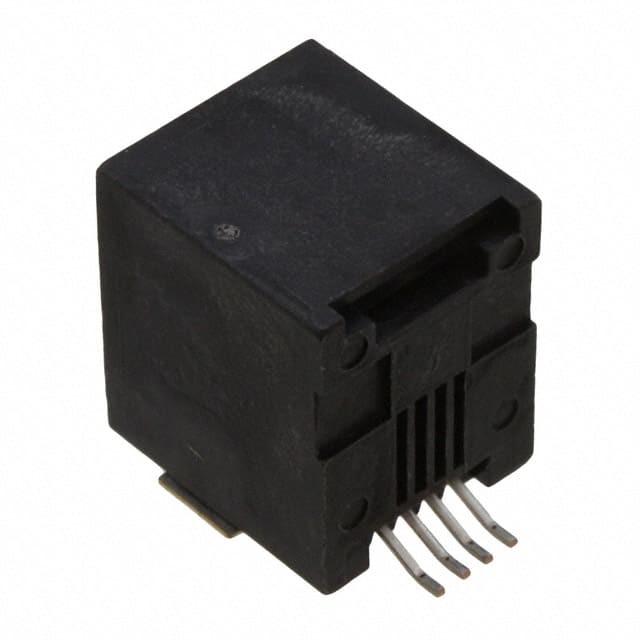

73306-111LF Amphenol ICC 73306-111LF is a 1-port unshielded modular jack with 4p4c (RJ9, RJ10, RJ22) configuration, right angle orientation, surface mount mounting, and solder termination.
Mfr Part #:

73306-111LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 73306-111LF is a 1-port unshielded modular jack with 4p4c (RJ9, RJ10, RJ22) configuration, right angle orientation, surface mount mounting, and solder termination.
✓ Total Stock: 4,480 pcs

73306-111LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
4,480 pcs
On Request
4480 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

73306-111LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
LED Color
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

73306-111LF Description

Short technical summary and product information.

The Amphenol ICC 73306-111LF is a modular connector jack designed for telecommunications and networking applications. It features a 4p4c (RJ9, RJ10, RJ22) configuration with 1 port and 1 row of contacts. The connector is unshielded and has a 90° angle (right) orientation with the tab direction up.



It is surface mount (SMD) with solder termination and includes solder retention for reliable mechanical attachment. The contacts are made of phosphor bronze with gold and GXT™ contact finish. The connector is rated Cat3.



This jack is intended for surface mount assembly processes and is suitable for applications requiring a compact, right-angle modular interface. It does not contain an LED indicator.

73306-111LF Quick Information

Product Type: Modular Connector Jack
Canonical Name: Modular Jack, 4p4c (RJ9, RJ10, RJ22), 1 Port, 90° Angle (Right), Unshielded, Surface Mount, Solder
Subcategory: Modular Connector Jacks

73306-111LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

73306-111LF Features

  • 4P4C (RJ9/RJ10/RJ22) modular jack.
  • Right-angle surface mount design.
  • Unshielded with solder retention.
  • Gold GXT™ plated phosphor bronze contacts.
  • Rated for Category 3 applications.

73306-111LF Applications

  • Used in telephones and handsets.
  • Ideal for low-speed data connections.
  • Suitable for compact electronic devices.
  • Designed for voice communication equipment.

73306-111LF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the position count of this modular jack?

It is a 4P4C (4-position, 4-conductor) jack, compatible with RJ9, RJ10, and RJ22 connectors.

What mounting style does this jack use?

Surface mount with solder termination.

What is the orientation of this jack?

90° angle (right) with tab up.

Is this jack shielded?

No, it is unshielded.

What contact finish does it have?

Gold and GXT™ over phosphor bronze.

What is the performance rating?

Category 3 (Cat3).

Is this component RoHS compliant?

Yes, it is listed as RoHS3 compliant (unverified).
