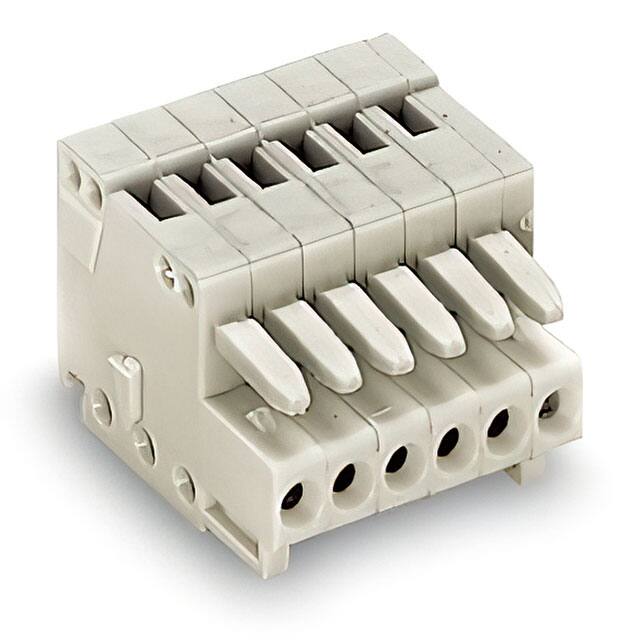

733-108 Wago 733-108 is a 1-conductor female plug with 8 positions, 2.5mm pitch, and push-in spring termination. It features CAGE CLAMP connection technology and locking lever for secure mating.
Mfr Part #:

733-108

Available from 1 distributors
Mfr Name: Wago Corporation
Wago Corporation
Wago 733-108 is a 1-conductor female plug with 8 positions, 2.5mm pitch, and push-in spring termination. It features CAGE CLAMP connection technology and locking lever for secure mating.
✓ Total Stock: 485 pcs

733-108 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
485 pcs
On Request
485 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

733-108 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Material
Contact Mating Finish
Current
Depth
Features
Height
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Weight
Width
Wire Gauge
Wire Gauge or Range
View Similar Products (0)

733-108 Description

Short technical summary and product information.

The Wago 733-108 is a 1-conductor female plug designed for use with MCS MULTI CONNECTION SYSTEM terminal blocks. It features 8 positions with a 2.5mm pitch and push-in spring (CAGE CLAMP) termination for fast and reliable wire connections. The plug accepts solid and fine-stranded conductors from 0.08 to 0.5 mm² (28-20 AWG) with a strip length of 5-6 mm. It is rated for 150V/4A under UL 1059 Use Group B and 100V/6A under IEC/EN 60664-1 (overvoltage category III/3). The plug is 100% protected against mismating and includes a locking lever for secure plug-in connection. The insulating material is polyamide 66 (PA 66) with V0 flammability rating. Operating temperature range is -60°C to 100°C. The plug is free hanging (in-line) mounting type and has a gray color. Dimensions: width 31.8mm, height 11.8mm, depth 17.1mm, weight 3.9g. Contact mating finish is tin. This plug is suitable for industrial control cabinets, building automation, and other applications requiring reliable wire-to-board connections.

733-108 Quick Information

Product Type: Female Plug (Terminal Block)
Canonical Name: Wago 733-108 1-Conductor Female Plug, 8 Positions, 2.5mm Pitch, Push-In Spring Termination
Subcategory: Plugs

733-108 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

733-108 Features

  • 8 positions with 2.5mm pitch spacing.
  • Push-in spring (CAGE CLAMP) termination.
  • Rated 150V/4A (UL) and 100V/6A (IEC).
  • 100% protected against mismating.
  • Locking lever for secure connection.

733-108 Applications

  • Used in industrial control panel wiring.
  • Suitable for building automation systems.
  • Ideal for sensor and actuator connections.
  • Applicable in machinery and equipment wiring.

733-108 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Wago 733-108 have?

8 positions.

What is the pitch of this plug?

2.5 mm.

What is the current rating?

4 A per UL 1059 Use Group B, 6 A per IEC/EN 60664-1.

What is the voltage rating?

150 V per UL 1059 Use Group B, 100 V per IEC/EN 60664-1 (overvoltage category III/3).

What type of termination does it use?

Screwless push-in spring (CAGE CLAMP).

What wire gauge does it accept?

0.08 to 0.5 mm² (28-20 AWG) solid or fine-stranded conductors.

What is the operating temperature range?

-60°C to 100°C.
