| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 97+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Mounting Type | |
| Operating Temperature |

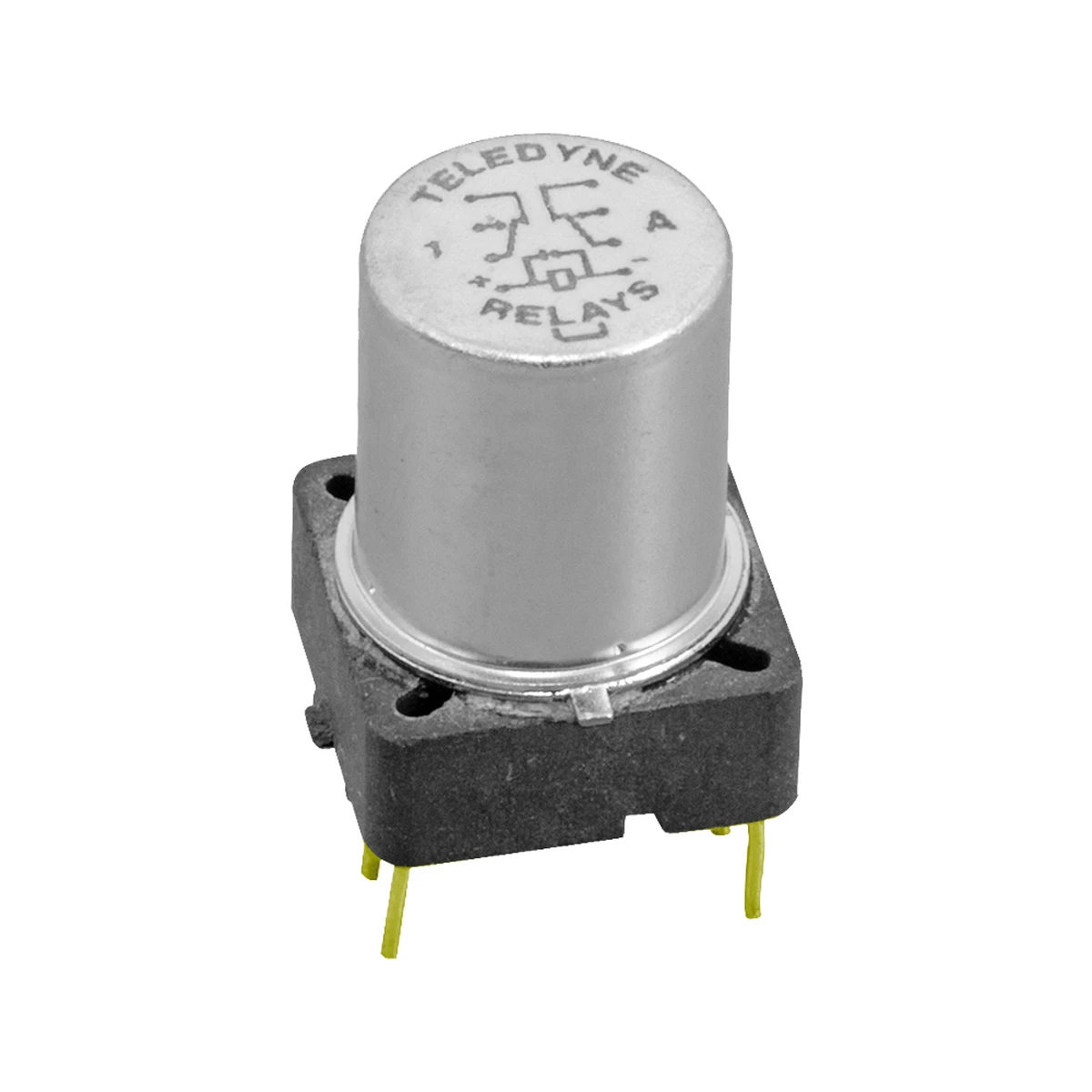

The Teledyne Series 732 TO-5 Relay, part number 732D5, is a hermetically sealed relay suitable for various electronic applications. It features a 2 Form C (DPDT) contact configuration, capable of handling 1A at 28VDC and 250mA at 115VAC. The relay is designed for continuous duty and operates at frequencies up to 1 GHz.
This TO-5 package relay has a 5 VDC coil with a resistance of 100 ohms and includes a diode. It is designed for through-hole mounting and has a temperature range of -55°C to +85°C. The dimensions of the TO-5 package are approximately 9.4 mm in diameter and 14.12 mm in height, with lead lengths of 19.05 mm.
Key specifications include a low-level contact rating of 10-50 mV at 10-50 µA. The relay is manufactured by Teledyne and is part of their Series 732 line.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Teledyne 732D5 relay has a 2 Form C (DPDT) contact configuration.
The relay is rated for 1 A at 28 VDC and 250 mA at 115 VAC.
The coil voltage for the Teledyne 732D5 relay is 5 VDC.
The operating temperature range is -55°C to +85°C.
The Teledyne 732D5 relay is in a TO-5 package with through-hole mounting.
