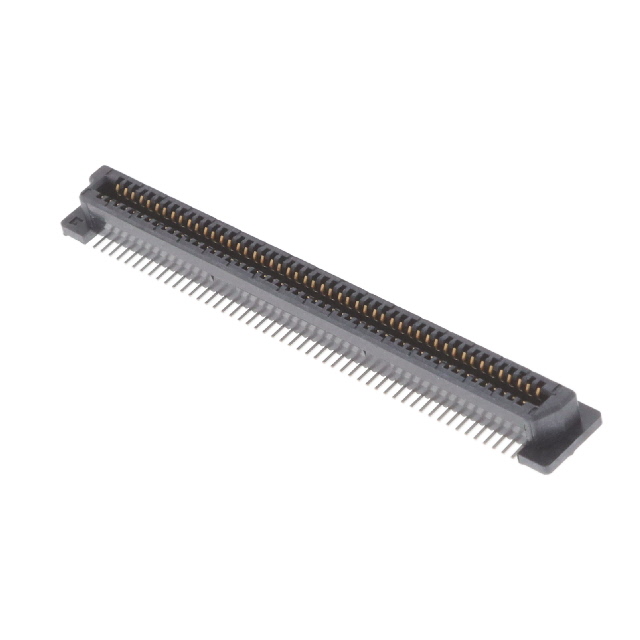

73277-101402LF This Amphenol ICC 73277-101402LF is a 100-position board-to-board receptacle with 2 rows at 0.8mm pitch. It features surface mount termination and gold-plated contacts.
Mfr Part #:

73277-101402LF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
This Amphenol ICC 73277-101402LF is a 100-position board-to-board receptacle with 2 rows at 0.8mm pitch. It features surface mount termination and gold-plated contacts.
✓ Total Stock: 750 pcs
$ Price Range: $5.13

73277-101402LF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
750 pcs
On Request
750 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

73277-101402LF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

73277-101402LF Description

Short technical summary and product information.

The Amphenol ICC 73277-101402LF is a surface-mount board-to-board receptacle featuring 100 positions arranged in 2 rows with a 0.80mm pitch. This connector includes a board guide to assist with alignment during assembly, and uses a receptacle with outer shroud contacts for reliable mating.



The contacts are gold-plated to 8.00µin (0.203µm), providing good conductivity and corrosion resistance. The connector measures 0.146 inches (3.70mm) in height above board, making it suitable for low-profile mezzanine stacking. Its surface-mount design supports automated SMT assembly.



This part is intended for parallel or mezzanine board-to-board interconnects in space-constrained electronic systems. It is listed as RoHS3 compliant and has an MSL rating of 1 for unlimited floor life.

73277-101402LF Quick Information

Product Type: Board-to-Board Receptacle
Series: BergStak
Canonical Name: 100 Position 2 Row 0.8mm Pitch Board-to-Board Receptacle
Subcategory: Mezzanine Connector

73277-101402LF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

73277-101402LF Estimated Pricing

Qty Low High
800+ $5.13 $5.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

73277-101402LF Features

  • 100 positions in 2 rows.
  • 0.80mm pitch for high density.
  • Surface mount for SMT assembly.
  • Gold plated contacts, 8µin.
  • Board guide aids alignment.

73277-101402LF Applications

  • Used for mezzanine board-to-board stacking.
  • Ideal for high-density interconnect systems.
  • Suitable for compact electronic assemblies.

73277-101402LF FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 73277-101402LF connector have?

It has 100 positions arranged in 2 rows.

What is the pitch of this connector?

0.80mm (0.031 inches).

What mounting type is required?

Surface mount.

What is the contact finish?

Gold, with a thickness of 8.00µin (0.203µm).

What is the height above board?

0.146 inches (3.70mm).

Does it have any alignment aids?

Yes, it includes a board guide.
