| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
250 pcs
|
250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Hole Diameter | |
| Length | |
| Material Thickness | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Style | |
| Terminal Type |

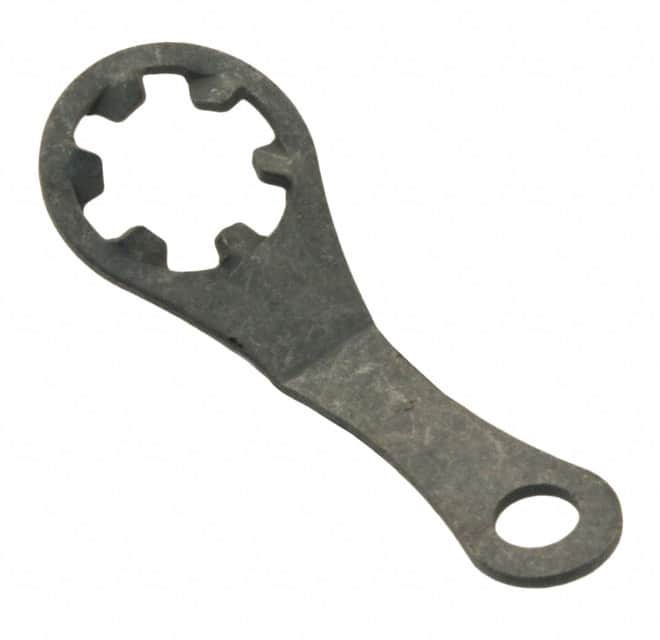

The 7319 from Keystone Electronics is a lockwasher terminal lug designed for use with #8 studs. It features an internal tooth style for secure fastening and an angled mounting orientation for space-constrained applications.
The terminal is constructed from 0.018" (0.46mm) thick brass with a tin-plated finish, providing good conductivity and corrosion resistance. The hole diameter measures 0.093" (2.36mm) and the overall length is 20.62mm (0.812"). The terminal type is long stem, shaped.
Typical applications include grounding connections, wire-to-stud terminations, and PCB mounting in electrical panels, automotive, and industrial equipment.
The stud size is #8.
The mounting type is angled.
The hole diameter is 0.093" (2.36mm).
The length is 20.62mm (0.812").
The contact material is brass with a tin finish.
The style is lockwasher with internal tooth.
