| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Height (H) | |
| Hole Diameter | |
| Length | |
| Material Thickness | |
| Mounting Angle | |
| Mounting Type | |
| Overall Length | |
| Stud | |
| Stud Size | |
| Style | |
| Terminal Type |

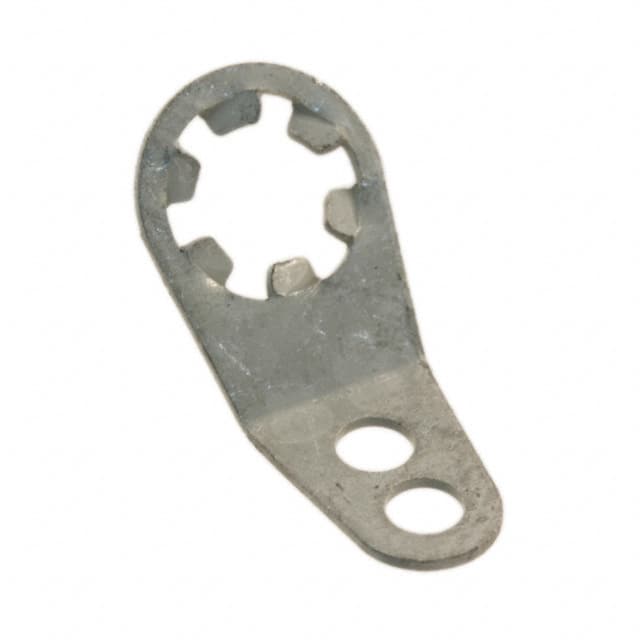

The Keystone Electronics 7313 is a lockwasher terminal lug designed for secure electrical connections. It features a #8 stud size with an angled mounting orientation, making it suitable for space-constrained applications. The lug has a 2.36mm (0.093") hole diameter and an overall length of 16.26mm (0.640").
Constructed from tin-plated brass, the lug offers good solderability and corrosion resistance. The material thickness is 0.46mm (0.018"). The internal tooth lockwasher style provides vibration resistance, preventing loosening of the connection in dynamic environments.
As a solder lug connector, this part is typically used in panel, chassis, or PCB applications requiring a reliable grounding or termination point. The angled design facilitates routing in tight layouts.
Angled mounting.
#8 stud size.
2.36mm (0.093 inches).
16.26mm (0.640 inches).
Brass with tin plating.
Yes, it is an internal tooth lockwasher style.
Yes, it is RoHS3 compliant per the datasheet.
