| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector | |
| 1st Connector Mounting Feature | |
| 1st Connector Mounting Type | |
| 1st Contact Gender | |
| 2nd Connector | |
| 2nd Connector Mounting Type | |
| 2nd Contact Gender | |
| Cable Impedance | |
| Cable Type | |
| Color | |
| Features | |
| Frequency | |
| Impedance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Overall Impedance | |
| Style |

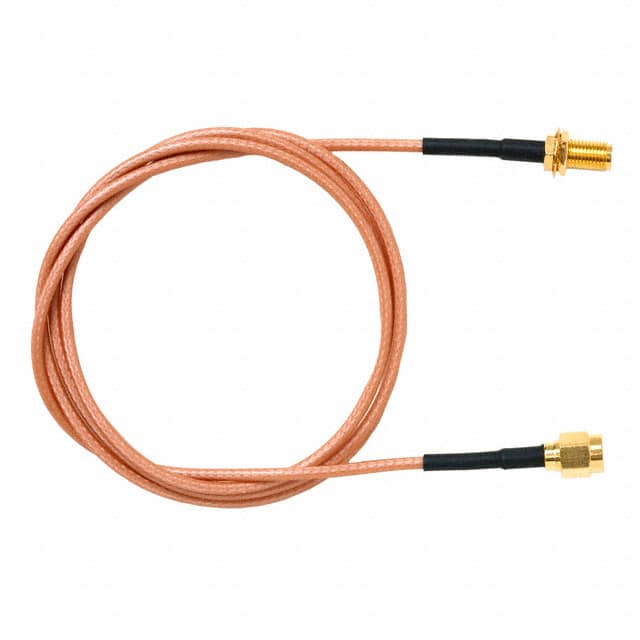

This Pomona Electronics 73070-BB-36 is a coaxial cable assembly featuring RG316 cable with SMA connectors on both ends. The first connector is an SMA Jack (Female) with panel mount and bulkhead front side nut mounting feature. The second connector is an SMA Plug (Male) with free hanging (in-line) mounting.
The cable is 914.40mm (36.00 inches) in length, has a characteristic impedance of 50 ohms, and is rated for frequencies up to 3 GHz. The assembly is shielded and operates over a temperature range of -65°C to 165°C. The jacket color is copper.
This assembly is suitable for RF test and measurement, telecommunications, and other high-frequency applications requiring a reliable 50 ohm interconnect. The panel mount SMA jack allows for secure bulkhead mounting, while the free hanging SMA plug provides flexibility for cable routing.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.99 | $22.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-65°C to 165°C
The documentation indicates RoHS3 compliant, but this status is unverified.
914.40mm (36.00 inches)
50 ohms
3 GHz
One end has SMA Jack (Female) panel mount with bulkhead, the other end has SMA Plug (Male) free hanging.
