| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Clamping Spring Material | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Type | |
| Depth | |
| Fire Load | |
| Flammability Rating | |
| Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Rated Current (Nominal @ All pollution degrees) | |
| Rated Current (Nominal @ CSA Use Group C) | |
| Rated Current (Nominal @ UL 1059 Use Group C) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (Nominal @ CSA Use Group C) | |
| Rated Voltage (Nominal @ Overvoltage category II, Pollution degree 2) | |
| Rated Voltage (Nominal @ Overvoltage category III, Pollution degree 2) | |
| Rated Voltage (Nominal @ Overvoltage category III, Pollution degree 3) | |
| Rated Voltage (Nominal @ UL 1059 Use Group C) | |
| Standard Package Quantity | |
| Strip Length | |
| Termination Style | |
| Weight | |
| Width | |
| Wire Gauge | |
| Wire Gauge (AWG) | |
| Wire Gauge Range |

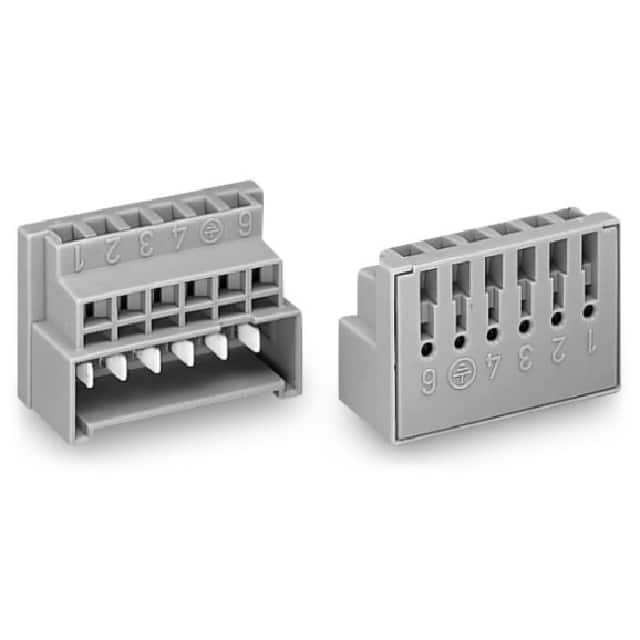

The Wago 730-116 is a 6-pole male connector from the 730 Series, designed for free hanging (in-line) mounting. It features the industry-proven CAGE CLAMP connection technology, ensuring secure and maintenance-free wire termination. The connector accepts solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG) with a strip length of 8 to 9 mm.
Electrical ratings include 10 A rated current per IEC/EN and UL/CSA standards, with rated voltage up to 1000 V depending on overvoltage category and pollution degree. The connector is UL 1059 and CSA certified for Use Group C at 600 V / 10 A. The housing is made of polyamide (PA66) with a UL94 V0 flammability rating, and contacts are tin-plated electrolytic copper.
With dimensions of 43 x 29 x 30 mm and a weight of 16.7 g, this connector is suitable for industrial control panels, building automation, and general wiring applications. It is supplied in bags of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.68 | $13.68 |
| 10+ | $11.63 | $11.63 |
| 25+ | $10.90 | $10.90 |
| 50+ | $10.38 | $10.38 |
| 100+ | $9.88 | $9.88 |
| 250+ | $9.26 | $9.26 |
| 500+ | $8.82 | $8.82 |
| 1,000+ | $8.40 | $8.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 10 A per IEC/EN 60664-1 and UL 1059 / CSA Use Group C.
It accepts solid and fine-stranded conductors from 0.08 to 2.5 mm², equivalent to 28 to 14 AWG.
The mounting type is Free Hanging (In-Line).
The operating temperature range is -60 to +85 °C.
It uses CAGE CLAMP connection technology.
