| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,700 pcs
|
4700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Access Time | |
| Bus Directional | |
| Current | |
| Data Rate | |
| Expansion Type | |
| FWFT Support | |
| Function | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Programmable Flags Support | |
| Retransmit Capability | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The Renesas 72T72115L5BBGI is a high-performance FIFO (First-In, First-Out) memory integrated circuit. It offers a substantial memory size of 9 Megabits, organized as 128K words by 72 bits, making it suitable for demanding data buffering applications.
This device supports both asynchronous and synchronous clock domains, providing flexibility in system design. It boasts impressive performance characteristics, including operating frequencies up to 225MHz and access times as low as 3.4ns. The supply voltage range is 2.375V to 2.625V, with a maximum current consumption of 130mA.

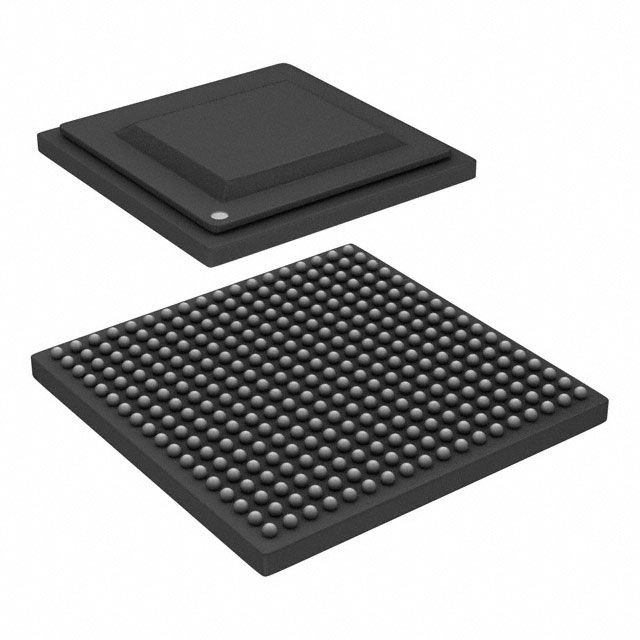

Packaged in a 324-ball BGA (Ball Grid Array) with dimensions of 19mm x 19mm, the 72T72115L5BBGI is designed for surface mounting. It features uni-directional bus directionality and supports programmable flags, retransmit capability, and First Word Fall Through (FWFT).
Applications for this FIFO memory include buffering data between systems operating at different speeds, making it ideal for use in networking equipment, telecommunication systems, and data communication interfaces. Its high-speed operation and large memory capacity facilitate efficient data flow management in complex digital systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The memory size is 9M (128K x 72).
The maximum operating frequency is 225MHz.
The fastest access time is 3.4ns.
The supply voltage range is 2.375V to 2.625V.
The operating temperature range is 0°C to 70°C.
The package is a 324-BGA / 324-PBGA (19x19).
Yes, it supports FWFT (First Word Fall Through).
