| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,350 pcs
|
7350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Height | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Resistance | |
| Time to Trip | |
| Type | |
| Voltage |

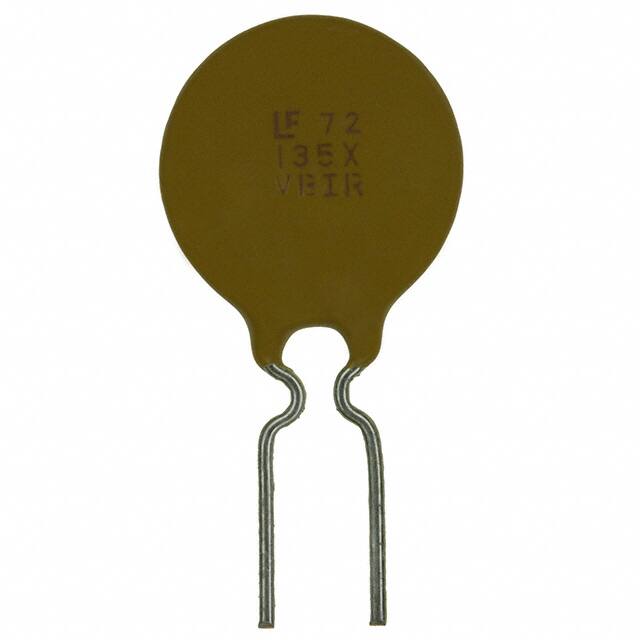

The 72R135XF is a polymeric PTC resettable fuse from Littelfuse Inc. It is designed to provide overcurrent protection in a variety of electronic circuits. The device has a maximum voltage rating of 72V and a hold current of 1.35A. Its time to trip is 9.6 seconds, and the initial resistance is 300 milliohms.
The fuse is housed in a radial disc package with a diameter of 0.535 inches (13.58mm) and a thickness of 0.122 inches (3.10mm). It features through-hole mounting with a lead spacing of 5.10mm (0.201 inches). The seated height is 19.80mm (0.780 inches). The operating temperature range is -40°C to 85°C.
This component is suitable for use in power supplies, battery chargers, and other applications requiring resettable overcurrent protection. Its polymeric construction allows it to automatically reset after a fault condition is cleared.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 5+ | $1.01 | $1.01 |
| 10+ | $0.94 | $0.94 |
| 50+ | $0.78 | $0.78 |
| 200+ | $0.66 | $0.66 |
| 400+ | $0.61 | $0.61 |
| 600+ | $0.58 | $0.58 |
| 1,000+ | $0.55 | $0.55 |
| 5,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 72V.
The hold current is 1.35A.
The time to trip is 9.6 seconds.
The initial resistance is 300 milliohms (0.3 ohms).
The package is a radial disc with through-hole mounting.
The operating temperature range is -40°C to 85°C.
