| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Adapter Series | |
| Adapter Type | |
| Approval Agency | |
| Body Material | |
| Center Contact Material | |
| Center Contact Plating | |
| Center Gender | |
| Conversion Type | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency Range | |
| Impedance | |
| Insulation Resistance | |
| Insulator Material | |
| Mounting Feature | |
| Mounting Type | |
| Style | |
| VSWR | |
| Working Voltage |

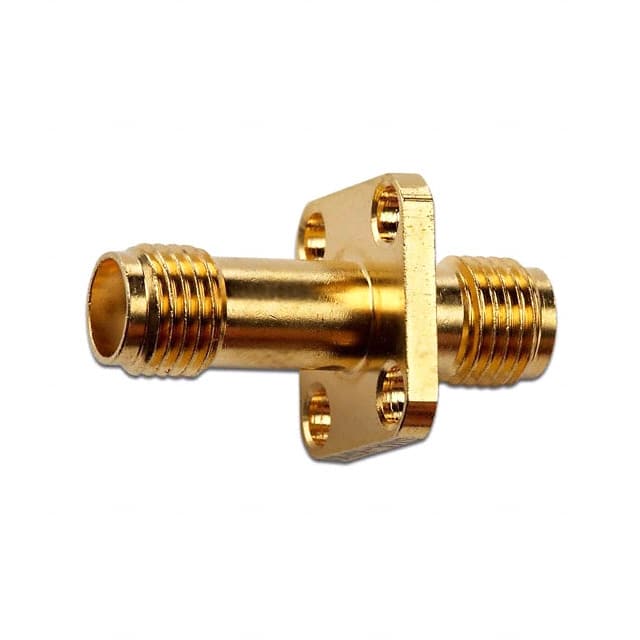

The Pomona Electronics 72973 is an SMA female to female coaxial adapter designed for RF applications requiring reliable signal integrity. It features a 50 Ohm impedance and operates from DC to 18 GHz, making it suitable for a wide range of high-frequency interconnects. The adapter supports a maximum working voltage of 500 Vrms and a dielectric withstanding voltage of 1000 Vrms, with a VSWR of 1.25 maximum.
This adapter is panel mounted with a flange for secure installation. The body is machined from brass and gold plated for low loss, while the center contact is beryllium copper with gold plating. The insulator is PTFE, ensuring stable dielectric properties. Contact resistance is 6 mOhm maximum for the center contact and 2 mOhm maximum for the outer contact, with insulation resistance of 5000 MOhm.
Designed for durability, the 72973 is rated for 500 insertions and is suitable for mobile communications and other RF systems requiring a compact, rugged adapter. The threaded fastening on both ends ensures secure mating. Compliance includes RoHS3 and REACH (unverified).
| Qty | Low | High |
|---|---|---|
| 1+ | $26.77 | $26.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The working voltage is 500 Vrms maximum, and the dielectric withstanding voltage is 1000 Vrms maximum.
It is panel mounted with a flange.
DC to 18 GHz.
50 Ohm.
Body: brass gold plated; center contact: beryllium copper gold plated; insulator: PTFE.
1.25 maximum.
500 insertions.
